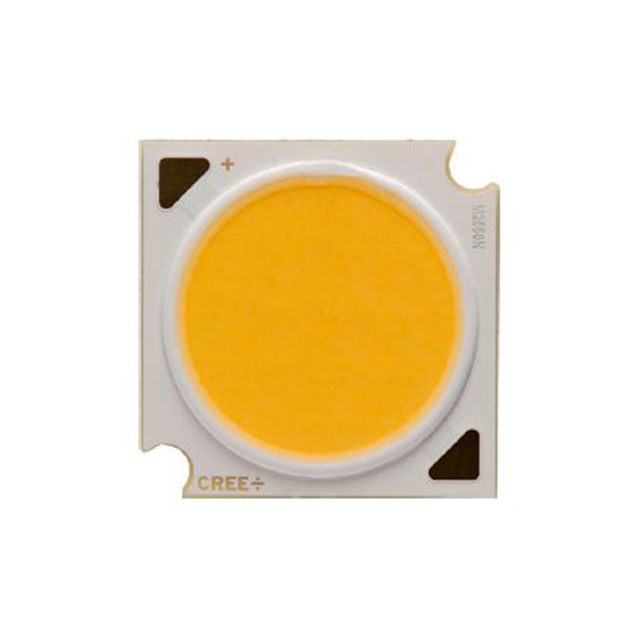

CMA2550-0000-000N0U0A30G

Active

Cree LED

LED COB XLAMP WARM WHT SQ 3000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMA2550-0000-000N0U0A30G

Active

Cree LED

LED COB XLAMP WARM WHT SQ 3000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 18.00
		10	$ 17.10
		50	$ 16.61
		100	$ 15.30
		200	$ 13.91
		500	$ 13.03

Description

General part information

CMA2550 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMA2550 White, Warm Square

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CMA2550-0000-000N0U0A30G	CMA2550 Series

CCT (K)	3000 K	2200 - 5700 K
Color	White, Warm	White, Warm, Neutral, Cool
Configuration	Square	Square
CRI (Color Rendering Index)	90	70 - 95
Current - Max [Max]	3.3 A	2.16 - 3.3 A
Height [z]	1.7 mm	1.7 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	19 mm	19 mm
Lumens/Watt @ Current - Test	122 lm/W	116 - 169 lm/W
Luminous Flux @ Current/Temperature	5792 lm	5530 - 8063 lm
Size / Dimension [x]	23.85 mm	23.85 mm
Size / Dimension [y]	23.85 mm	23.85 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	115 °	115 °
Voltage - Forward (Vf) (Typ)	34 V	34 V

CMA2550 Series

LED COB XLAMP WARM WHT SQU 3000K

Part	CRI (Color Rendering Index)	Configuration	Lumens/Watt @ Current - Test	Lens Type	Voltage - Forward (Vf) (Typ)	Light Emitting Surface (LES) [diameter]	Temperature - Test	Viewing Angle	CCT (K)	Type	Height [z]	Color	Current - Max [Max]	Luminous Flux @ Current/Temperature	Size / Dimension [x]	Size / Dimension [y]
Cree LED CMA2550-0000-000N0H0AL7B	80	Square	144 lm/W	Flat	34 V	19 mm	85 °C	115 °	3000 K	Chip On Board (COB)	1.7 mm	Warm, White	3.3 A	6850 lm	23.85 mm	23.85 mm
Cree LED CMA2550-0000-000N0H0A30G	80	Square	144 lm/W	Flat	34 V	19 mm	85 °C	115 °	3000 K	Chip On Board (COB)	1.7 mm	Warm, White	3.3 A	6850 lm	23.85 mm	23.85 mm
Cree LED CMA2550-0000-00PN0U0A30U	90	Square		Flat	34 V	19 mm	85 °C	115 °	3000 K	Chip On Board (COB)	1.7 mm	Warm, White	3.3 A		23.85 mm	23.85 mm
Cree LED CMA2550-0000-00PN0U0A35G	90	Square		Flat	34 V	19 mm	85 °C	115 °	3500 K	Chip On Board (COB)	1.7 mm	Warm, White	3.3 A		23.85 mm	23.85 mm
Cree LED CMA2550-0000-00PN0U0A40H	90	Square		Flat	34 V	19 mm	85 °C	115 °	4000 K	Chip On Board (COB)	1.7 mm	Neutral, White	3.3 A		23.85 mm	23.85 mm
Cree LED CMA2550-0000-00PN0Z0A40H	95	Square		Flat	34 V	19 mm	85 °C	115 °	4000 K	Chip On Board (COB)	1.7 mm	Neutral, White	3.3 A		23.85 mm	23.85 mm
Cree LED CMA2550-0000-000N0U0A57G	90	Square	135 lm/W	Flat	34 V	19 mm	85 °C	115 °	5700 K	Chip On Board (COB)	1.7 mm	Cool, White	3.3 A		23.85 mm	23.85 mm
Cree LED CMA2550-0000-000N0U0A27G	90	Square	116 lm/W	Flat	34 V	19 mm	85 °C	115 °	2700 K	Chip On Board (COB)	1.7 mm	Warm, White	3.3 A	5530 lm	23.85 mm	23.85 mm
Cree LED CMA2550-0000-00PN0U0A30G	90	Square	137 lm/W	Flat	34 V	19 mm	85 °C	115 °	3000 K	Chip On Board (COB)	1.7 mm	Warm, White	2.16 A	6508 lm	23.85 mm	23.85 mm
Cree LED CMA2550-0000-000N0U0A40H	90	Square	131 lm/W	Flat	34 V	19 mm	85 °C	115 °	4000 K	Chip On Board (COB)	1.7 mm	Neutral, White	3.3 A	6226 lm	23.85 mm	23.85 mm
