POE-INJ-1000-WTs
ActiveTycon Systems Inc.
GIGABIT PASSIVE POE INJECTOR/SPL
POE-INJ-1000-WTs
ActiveTycon Systems Inc.
GIGABIT PASSIVE POE INJECTOR/SPL
Description
General part information

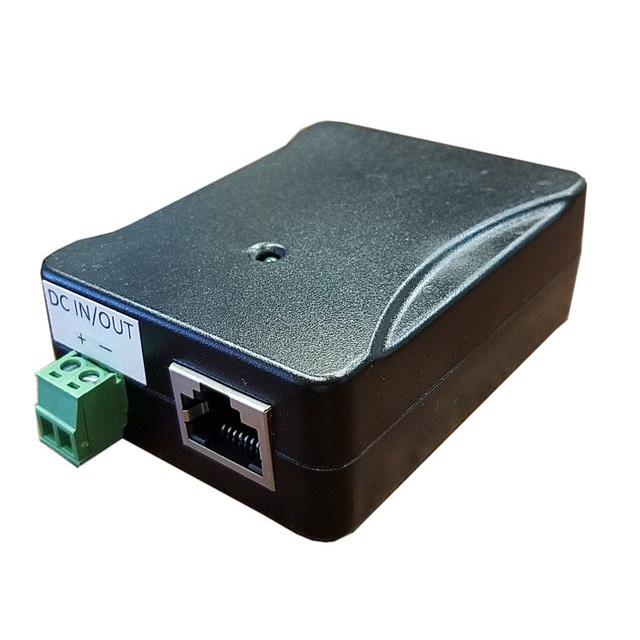

POE-INJ-1000-WTs
57.78V Power Over Ethernet (POE) 1 Port Splitter 10/100/1000 Mbps Data Rate
Technical Specifications
Parameters and characteristics for this part
| Specification | POE-INJ-1000-WTs |
|---|---|
| Current - Output | 2.25 A |
| Input Connector | RJ45 (Data), Terminal Block (Power) |
| Maximum Data Rate | 1000 Mbps |
| Minimum Data Rate | 10 Mbps |
| Mounting Type | Desktop |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Connector | Power), RJ45 (Data |
| Power (Watts) - Per Port | 130 W |
| Size / Dimension Height | 0.95 in |
| Size / Dimension Length | 2.8 in |
| Size / Dimension Width | 2.1 in |
| Type | Splitter |
| Typical Data Rate | 100 Mbps |
| Voltage - Input (Maximum) | 58 V |
| Voltage - Input (Minimum) | 5 V |
| Voltage - Output | 57.78 V |
