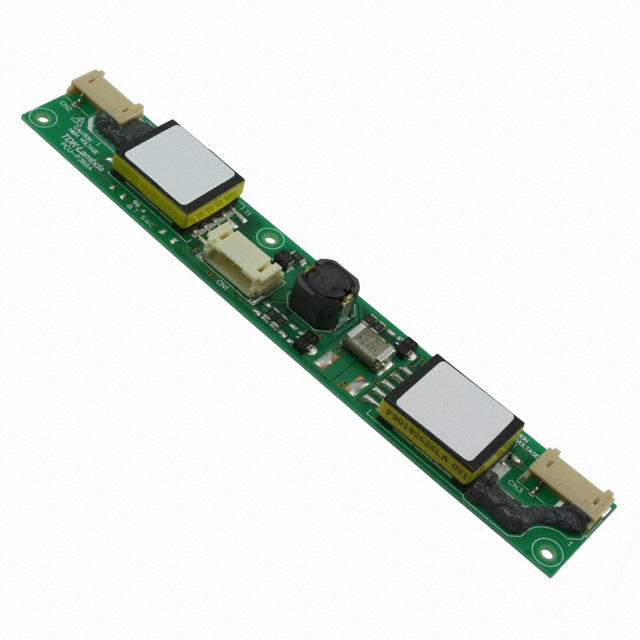

CXA-P1012B-NJL
ObsoleteTDK Corporation
INVERTER 12V-INPUT 1500V-OUTPUT
CXA-P1012B-NJL
ObsoleteTDK Corporation
INVERTER 12V-INPUT 1500V-OUTPUT
Description
General part information
CXA-P1012B-NJL
CCFL and UV Lamps Inverter 11.4 ~ 12.6V Input 1500V Output 5.14" L x 0.81" W x 0.31" H (130.5mm x 20.5mm x 8mm) Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | CXA-P1012B-NJL |
|---|---|
| Mounting Type | Chassis Mount |
| Output Voltage | 1500 V |
| Size / Dimension Height | 0.31 in |
| Size / Dimension Length | 5.14 in |
| Size / Dimension Width | 0.81 in |
| Type | CCFL and UV Lamps |
| Voltage - Input (Maximum) | 12.6 V |
| Voltage - Input (Minimum) | 11.4 V |
