Description
General part information
MMF404957

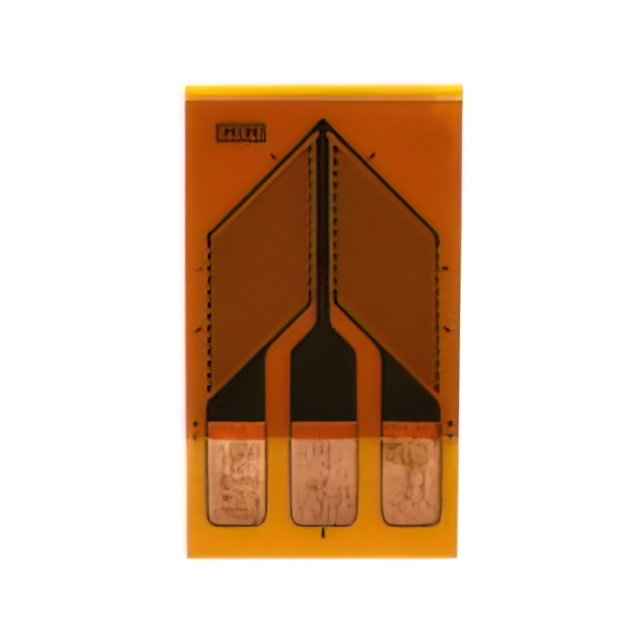

Shear/Torque Strain Gauge ±5% 0.187" (4.75mm) 0.170" (4.32mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | MMF404957 |
|---|---|
| Length - Active | 0.187 in |
| Length - Overall | 0.63 in |
| Length - Overall Pattern | 0.56 in |
| Length - Overall Pattern (mm) | 14.22 mm |
| Operating Temperature (Max) | 347 °F |
| Operating Temperature (Min) | -103 °F |
| Pattern Type | Torque, Shear |
| Resistance | 350 Ohm |
| Resistance Tolerance (%) | 0.2 % |
| Strain Range | 5 % |
| Width - Active | 0.17 in |
| Width - Overall | 0.39 in |
| Width - Overall Pattern | 0.32 in |
