GMLB-160808-0600L-N8
ActivePulse Electronics

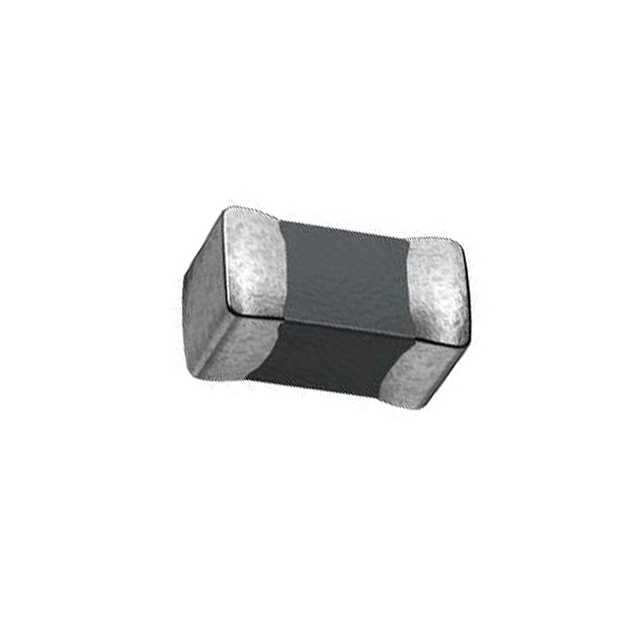

FERRITE BEAD 600 OHM 0603 1LN
GMLB-160808-0600L-N8
ActivePulse Electronics
FERRITE BEAD 600 OHM 0603 1LN
Description
General part information
GMLB-160808-0600L-N8
600 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 0603 (1608 Metric) 800mA 350mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | GMLB-160808-0600L-N8 |
|---|---|
| Current Rating (Max) | 800 mA |
| DC Resistance (DCR) (Max) | 350 mOhm |
| Filter Type | Signal Line |
| Height (Max) | 0.037 in |
| Impedance | 600 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.031 in |
