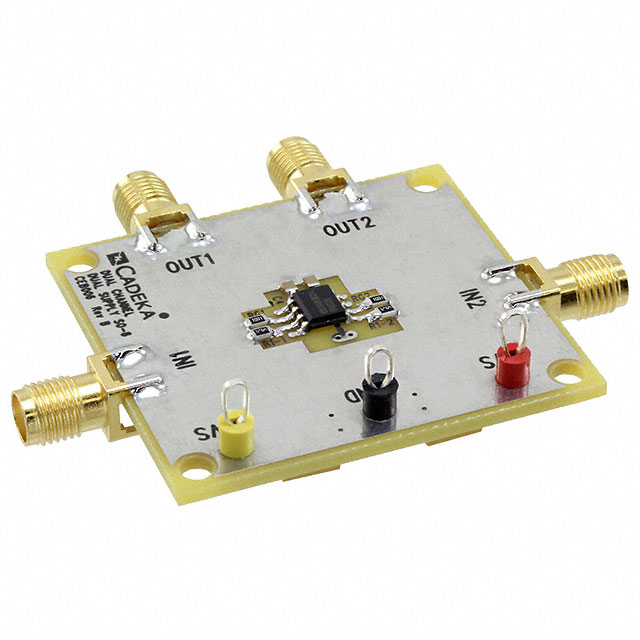

XR2008ISO8EVB
UnknownMaxLinear, Inc.
BOARD EVALUATION XR2008ISO8
XR2008ISO8EVB
UnknownMaxLinear, Inc.
BOARD EVALUATION XR2008ISO8
Description
General part information
XR2008ISO8EVB
XR2008 2 - Dual Channels per IC Voltage Feedback Amplifier Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | XR2008ISO8EVB |
|---|---|
| -3db Bandwidth | 75 MHz, 35 MHz |
| Amplifier Type | Voltage Feedback |
| Board Type | Fully Populated |
| Channels per IC (Count) | 2 |
| Channels per IC (Dual) | 2 |
| Channels per IC (Type) | Dual |
| Contents | Board |
| Current - Output / Channel | 15 mA |
| Current - Supply (Main IC) | 0.000505 µA |
| Gain Bandwidth Product | 33 MHz |
| Output Type | Rail-to-Rail, Single-Ended |
| Slew Rate | 50 V/µs |
| Supplied Contents | Board(s) |
| Supply Configuration | Single, Dual |
| Utilized IC / Part | XR2008 |
| Voltage - Supply (Dual) Maximum (Magnitude) | 2.75 V |
| Voltage - Supply (Dual) Minimum (Magnitude) | 1.25 V |
| Voltage - Supply (Single) Maximum | 5.5 V |
| Voltage - Supply (Single) Minimum | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
