ZCAT20D
ActiveTDK Corporation
FERRITE CORE 150 OHM HINGED
ZCAT20D
ActiveTDK Corporation
FERRITE CORE 150 OHM HINGED
Description
General part information
ZCAT20D

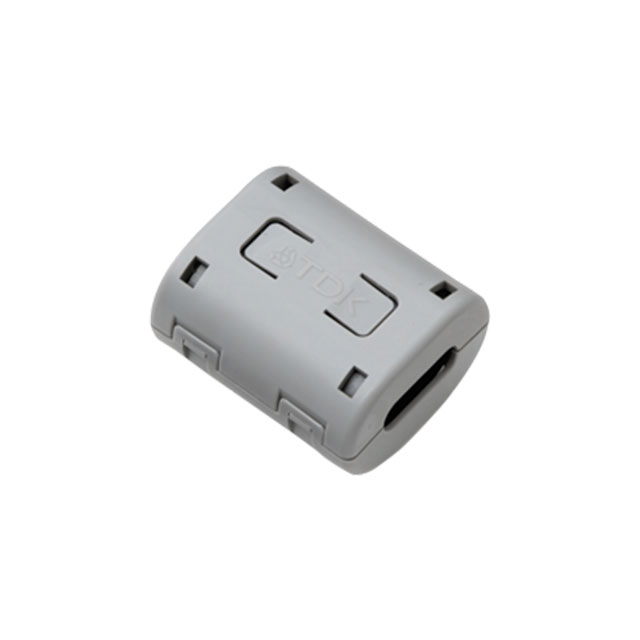

Hinged (Snap On) Free Hanging Ferrite Core 150Ohm @ 100MHz ~ 500MHz ID 0.591" W x 0.197" H (15.00mm x 5.00mm) OD 1.181" W x 0.787" H (30.00mm x 20.00mm) Length 1.378" (35.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | ZCAT20D |
|---|---|
| Design | Hinged (Snap On) |
| Impedance | 150 Ohm |
| Inner Dimension Height | 0.197 in |
| Inner Dimension Width | 0.591 in |
| Length | 1.378 in |
| Mounting Type | Free Hanging |
| Outer Dimension Height | 0.787 in |
| Outer Dimension Width | 1.181 in |
| Type | Flat |
