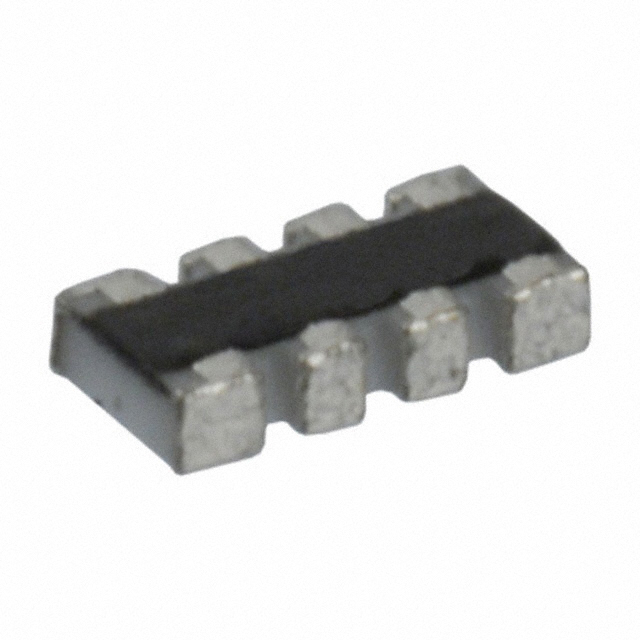

741X083360JP
ActiveTusonix a Subsidiary of CTS Electronic Components
RES ARRAY 4 RES 36 OHM 0804
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
741X083360JP
ActiveTusonix a Subsidiary of CTS Electronic Components
RES ARRAY 4 RES 36 OHM 0804
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 741X083360JP |
|---|---|
| Applications | DDR SDRAM, DRAM, MDDR |
| Circuit Type | Isolated |
| Grade | Automotive |
| Height - Seated (Max) [Max] [z] | 0.022 in |
| Height - Seated (Max) [Max] [z] | 0.55 mm |
| Mounting Type | Surface Mount |
| Number of Pins | 8 |
| Number of Resistors | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0804, Convex, Long Side Terminals |
| Power Per Element | 63 mW |
| Qualification | AEC-Q200 |
| Resistance (Ohms) | 36 Ohms |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 1 mm |
| Size / Dimension [y] | 0.039 " |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 20000 | $ 0.01 | |
Description
General part information
741X083360JP
36 Ohm ±5% 63mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 0804, Convex, Long Side Terminals
