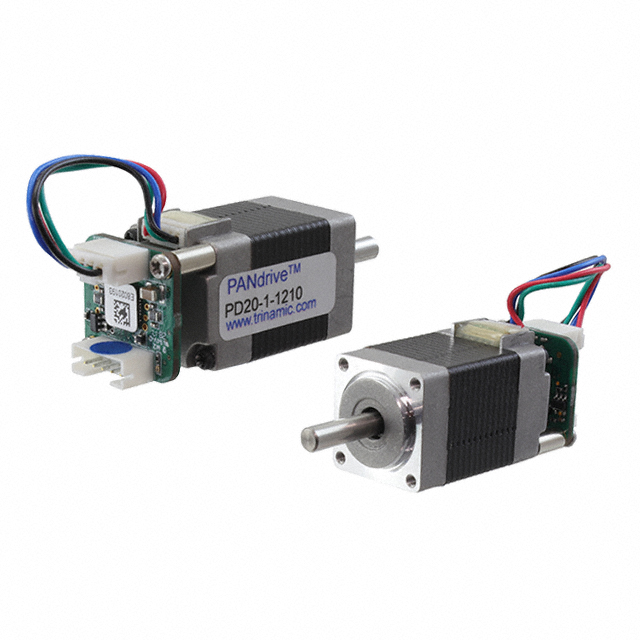

PD20-1-1210
ActiveAnalog Devices Inc./Maxim Integrated
PANDRIVE NEMA08, 24V, 1.75NCM
Deep-Dive with AI
Search across all available documentation for this part.
PD20-1-1210
ActiveAnalog Devices Inc./Maxim Integrated
PANDRIVE NEMA08, 24V, 1.75NCM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PD20-1-1210 |
|---|---|
| Coil Resistance | 6.5 Ohms |
| Coil Type | Bipolar |
| Current Rating (Amps) | 600 mA |
| Diameter - Shaft [diameter] | 0.157 in |
| Diameter - Shaft [diameter] | 4 mm |
| Features | Integrated Controller, Round Shaft |
| Length - Shaft and Bearing [x] | 0.591 in |
| Length - Shaft and Bearing [x] | 15 mm |
| Mounting Hole Spacing | 0.63 in |
| Mounting Hole Spacing | 16 mm |
| NEMA Frame Size | 8 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Rotor Inertia | 2 gcm˛ |
| Size / Dimension [x] | 0.787 in |
| Size / Dimension [x] | 20 mm |
| Size / Dimension [y] | 20 mm |
| Size / Dimension [y] | 0.787 in |
| Step Angle | 1.8 ° |
| Steps per Revolution | 200 |
| Termination Style | Connector |
| Torque - Holding (oz-in / mNm) | 2.48 oz-in |
| Torque - Holding (oz-in / mNm) | 17.5 mNm |
| Type | Hybrid |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 184.72 | |
| 5 | $ 169.76 | |||
| 10 | $ 163.69 | |||
| 25 | $ 157.82 | |||
PD20-1 Series
PANDRIVE NEMA08, 24V, 1.75NCM
| Part | Type | Features | Step Angle | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Current Rating (Amps) | Coil Resistance | Termination Style | Mounting Hole Spacing | Mounting Hole Spacing | Rotor Inertia | Voltage - Rated | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | NEMA Frame Size | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Steps per Revolution | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated PD20-1-1210 | Hybrid | Integrated Controller, Round Shaft | 1.8 ° | 0.591 in | 15 mm | 600 mA | 6.5 Ohms | Connector | 0.63 in | 16 mm | 2 gcm˛ | 24 VDC | 0.787 in | 20 mm | 0.787 in | 20 mm | 0.157 in | 4 mm | 50 °C | -20 C | 8 | 2.48 oz-in | 17.5 mNm | 200 | Bipolar |
Description
General part information
PD20-1 Series
Bipolar Stepper Motor Hybrid Frame Size 8 200.0 Step 600 mA 24VDC
Documents
Technical documentation and resources
No documents available
