BT816Q-R

Active

Bridgetek Pte Ltd.

ENHANCED EVE2 GRAPHICS CONTROLLE

Search across all available documentation for this part.

Active

Bridgetek Pte Ltd.

ENHANCED EVE2 GRAPHICS CONTROLLE

Technical Specifications

Parameters and characteristics for this part

Specification	BT816Q-R

Applications	Human Machine Interfaces (HMI)
Interface	LED, SPI, QSPI, LCD
Mounting Type	Surface Mount
Number of I/O	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

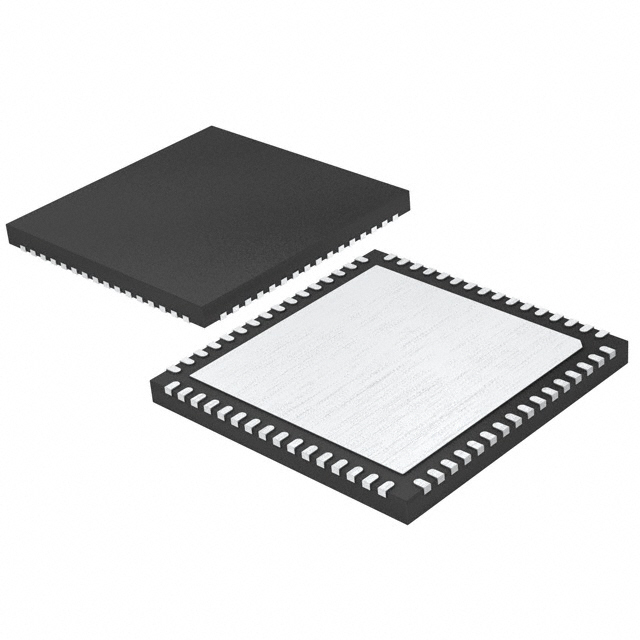

Package / Case	64-VFQFN Exposed Pad
Program Memory Type	FLASH
Supplier Device Package	64-VQFN (9x9)
Voltage - Supply [Max]	3.63 V
Voltage - Supply [Min]	2.97 V

ENHANCED EVE2 GRAPHICS CONTROLLE

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Interface	Number of I/O	Mounting Type	Program Memory Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Applications	Package / Case
Bridgetek Pte Ltd. BT816Q-R	64-VQFN (9x9)	85 °C	-40 °C	LCD, LED, QSPI, SPI	4	Surface Mount	FLASH	2.97 V	3.63 V	Human Machine Interfaces (HMI)	64-VFQFN Exposed Pad

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ENHANCED EVE2 GRAPHICS CONTROLLE
