Description
General part information

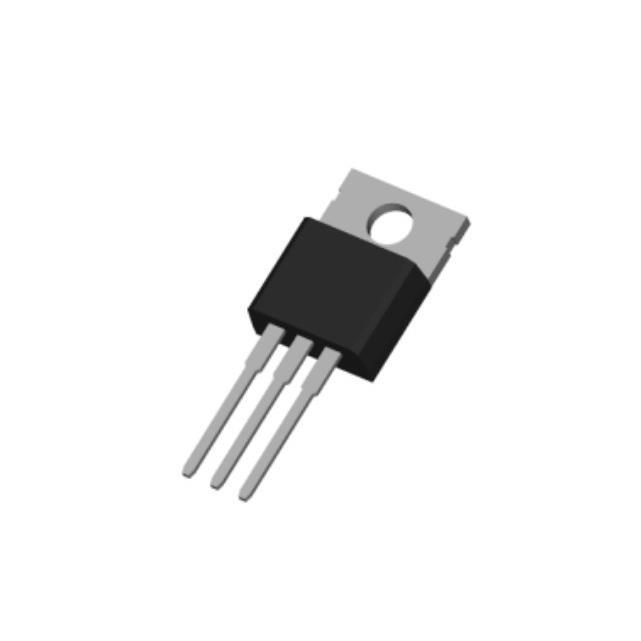

LM29300T-3.3
Linear Voltage Regulator IC Positive Fixed 1 Output 3A TO-220-3L
Technical Specifications
Parameters and characteristics for this part
| Specification | LM29300T-3.3 |
|---|---|
| Current - Output | 3 A |
| Current - Quiescent (Iq) | 35 mA |
| Current - Supply (Max) | 37 mA |
| Mounting Type | Through Hole |
| Number of Regulators | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | TO-220-3 |
| Package Name | TO-220-3L |
| Protection Features | Load Dump, Over Current, Reverse Polarity, Over Temperature |
| Voltage - Input (Max) | 26 V |
| Voltage - Output (Min/Fixed) | 3.3 V |
| Voltage Dropout (Max) | 0.6 V |
