QS32XL384Q1G
ActiveQUICKSWITCH HIGH-SPEED CMOS 20-BIT BUS SWITCH
Deep-Dive with AI
Search across all available documentation for this part.
QS32XL384Q1G
ActiveQUICKSWITCH HIGH-SPEED CMOS 20-BIT BUS SWITCH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | QS32XL384Q1G | 32XL384 Series |
|---|---|---|
| Circuit [custom] | 2 | 2 |
| Circuit [custom] | 10:10 | 10:10 |
| Independent Circuits | 2 | 2 |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |

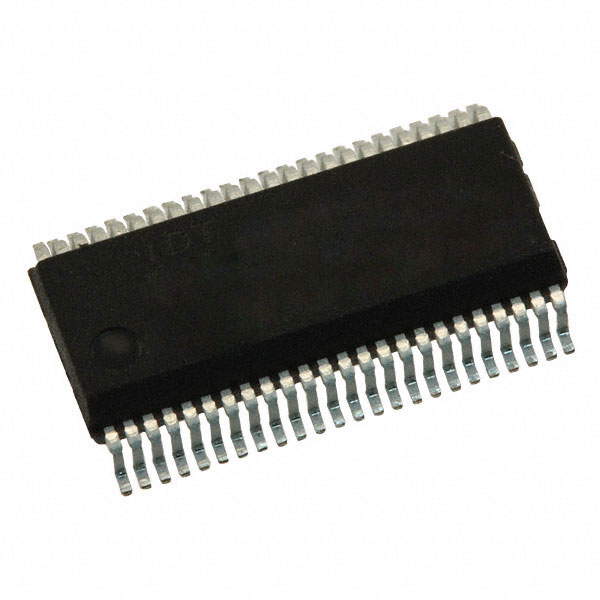

| Package / Case | 48-FSOP | 48-FSOP |
| Package / Case [custom] | 3.9 mm, 0.154 " | 0.154 - 3.9 mm |
| Supplier Device Package | 48-QVSOP | 48-QVSOP |
| Type | Bus Switch | Bus Switch |
| Voltage - Supply [Max] | 5.25 V | 5.25 V |
| Voltage - Supply [Min] | 4.75 V | 4.75 V |
| Voltage Supply Source | Single Supply | Single Supply |
32XL384 Series
QuickSwitch High-speed CMOS 20-Bit Bus Switch
| Part | Package / Case [custom] | Package / Case | Supplier Device Package | Voltage - Supply [Min] | Voltage - Supply [Max] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Type | Circuit [custom] | Circuit [custom] | Voltage Supply Source | Independent Circuits |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Renesas Electronics Corporation QS32XL384Q1G | 0.154 ", 3.9 mm | 48-FSOP | 48-QVSOP | 4.75 V | 5.25 V | Surface Mount | 85 °C | -40 °C | Bus Switch | 2 | 10:10 | Single Supply | 2 |
Renesas Electronics Corporation QS32XL384Q1G8 | 0.154 ", 3.9 mm | 48-FSOP | 48-QVSOP | 4.75 V | 5.25 V | Surface Mount | 85 °C | -40 °C | Bus Switch | 2 | 10:10 | Single Supply | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 592 | $ 0.51 | |
Description
General part information
32XL384 Series
The QS32XL384 provides a set of twenty high-speed CMOS TTL-compatible bus switches. The low ON resistance of the QS32XL384 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. Four Bus Enable signals are provided, one for each of five bits of the 20-bit bus. The QS32XL384 is ideal for switching wide digital buses, as well as hot-docking, 5V to 3V conversion and capacitance isolation for power conservation. The QS32XL384 operates at -40C to +85C.
