794072-2

Active

TE Connectivity AMP Connectors

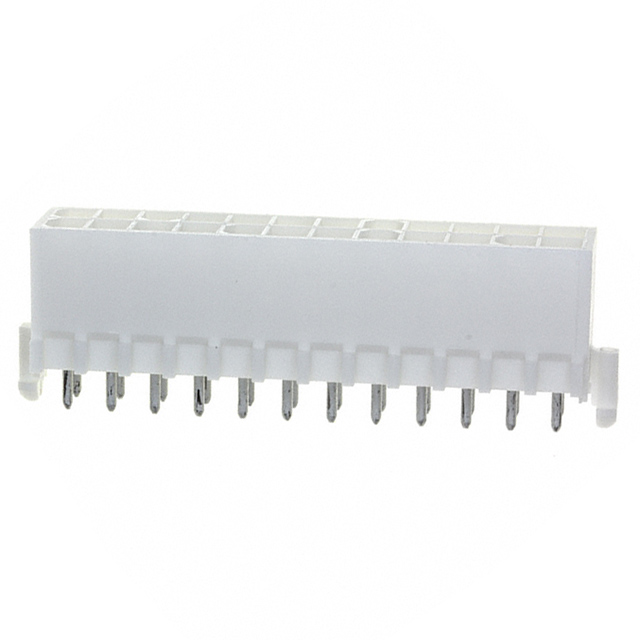

CONN HEADER VERT 24POS 4.14MM

Deep-Dive with AI

Search across all available documentation for this part.

794072-2

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 24POS 4.14MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 7.50
		50	$ 7.22
		200	$ 7.08
		400	$ 6.94

Description

General part information

794072 Series

Connector Header Through Hole 24 position 0.163" (4.14mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	794072-2	794072 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold, Tin-Lead
Contact Finish - Post	Tin-Lead	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 - 150 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 - 3.81 Ám
Contact Finish Thickness - Post	150 Áin	150 Áin
Contact Finish Thickness - Post	3.81 Ám	3.81 Ám
Contact Length - Post	4.45 mm	4.45 mm
Contact Length - Post	0.175 in	0.175 in
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	White	White
Insulation Height	13.5 mm	13.5 mm
Insulation Height	0.531 in	0.531 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	24	24
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	85 - 105 ░C
Operating Temperature [Min]	-20 C	-20 C
Pitch - Mating	4.14 mm	4.14 mm
Pitch - Mating	0.163 in	0.163 in
Row Spacing - Mating	4.14 mm	4.14 mm
Row Spacing - Mating	0.163 in	0.163 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	600 VAC	600 VAC

794072 Series

CONN HEADER VERT 24POS 4.14MM

Part	Insulation Color	Shrouding	Contact Shape	Material Flammability Rating	Contact Material	Number of Rows	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Number of Positions	Insulation Height	Insulation Height	Insulation Material	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Style	Contact Length - Post	Contact Length - Post	Applications	Termination	Contact Type	Voltage Rating	Row Spacing - Mating	Row Spacing - Mating
TE Connectivity AMP Connectors 1-794072-1	White	Shrouded - 4 Wall	Circular	UL94 V-0	Brass	2	Tin	-20 C	105 ░C	Gold	Through Hole	30 Áin	0.76 Ám	Locking Ramp	24	13.5 mm	0.531 in	Nylon, Polyamide (PA)	4.14 mm	0.163 in	Varies by Wire Gauge	Header	150 Áin	3.81 Ám	All	Board to Cable/Wire	4.45 mm	0.175 in	General Purpose	Solder	Male Pin	600 VAC	4.14 mm	0.163 in
TE Connectivity AMP Connectors 1-794072-0	White	Shrouded - 4 Wall	Circular	UL94 V-0	Brass	2	Tin	-20 C	85 °C		Through Hole	150 Áin	3.81 Ám	Locking Ramp	24	13.5 mm	0.531 in	Nylon, Polyamide (PA)	4.14 mm	0.163 in	Varies by Wire Gauge	Header	150 Áin	3.81 Ám	All	Board to Cable/Wire	4.45 mm	0.175 in	General Purpose	Solder	Male Pin	600 VAC	4.14 mm	0.163 in
TE Connectivity AMP Connectors 794072-1	White	Shrouded - 4 Wall	Circular	UL94 V-0	Brass	2	Tin-Lead	-20 C	85 °C	Tin-Lead	Through Hole	150 Áin	3.81 Ám	Locking Ramp	24	13.5 mm	0.531 in	Nylon, Polyamide (PA)	4.14 mm	0.163 in	Varies by Wire Gauge	Header	150 Áin	3.81 Ám	All	Board to Cable/Wire	4.45 mm	0.175 in	General Purpose	Solder	Male Pin	600 VAC	4.14 mm	0.163 in
TE Connectivity AMP Connectors 794072-2	White	Shrouded - 4 Wall	Circular	UL94 V-0	Brass	2	Tin-Lead	-20 C	105 ░C	Gold	Through Hole	30 Áin	0.76 Ám	Locking Ramp	24	13.5 mm	0.531 in	Nylon, Polyamide (PA)	4.14 mm	0.163 in	Varies by Wire Gauge	Header	150 Áin	3.81 Ám	All	Board to Cable/Wire	4.45 mm	0.175 in	General Purpose	Solder	Male Pin	600 VAC	4.14 mm	0.163 in
