2-1418479-1
ActiveTE Connectivity AMP Connectors

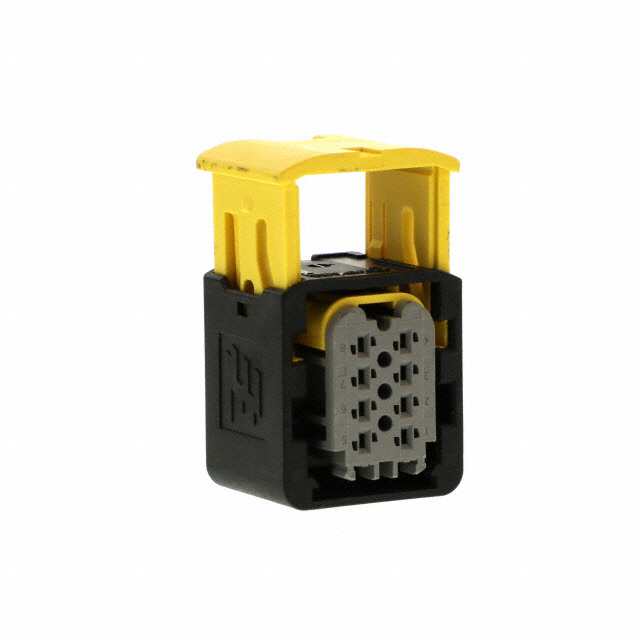

CONN RCPT HSG 8POS 4.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

2-1418479-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 8POS 4.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
Specification | 2-1418479-1 | 1418479 Series |
---|---|---|
Color | Gray | Blue, Green, Gray |
Connector Type | Receptacle | Receptacle |
Contact Termination | Crimp | Crimp |
Contact Type | Female Socket | Female Socket |
Fastening Type | Slide-On | Slide-On |
Features | Sealed | Sealed |
Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
Note | Contacts Not Included | Contacts Not Included |
Number of Positions | 8 | 8 |
Number of Rows | 2 | 2 |
Operating Temperature [Max] | 140 °C | 140 °C |
Operating Temperature [Min] | -40 °C | -40 °C |
Pitch [x] | 4 mm | 4 mm |
Pitch [x] | 0.157 in | 0.157 in |
Row Spacing [Max] | 0.236 in | 0.236 in |
Row Spacing [Max] | 6 mm | 6 mm |
1418479 Series
CONN RCPT HSG 8POS 4.00MM
Part | Color | Number of Rows | Features | Mounting Type | Fastening Type | Pitch [x] | Pitch [x] | Connector Type | Contact Termination | Insulation Material | Contact Type | Number of Positions | Row Spacing [Max] | Row Spacing [Max] | Note | Operating Temperature [Max] | Operating Temperature [Min] |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 4-1418479-1 | Blue | 2 | Sealed | Free Hanging (In-Line) | Slide-On | 4 mm | 0.157 in | Receptacle | Crimp | Polybutylene Terephthalate (PBT), Glass Filled | Female Socket | 8 | 0.236 in | 6 mm | Contacts Not Included | 140 °C | -40 °C |
TE Connectivity AMP Connectors 3-1418479-1 | Green | 2 | Sealed | Free Hanging (In-Line) | Slide-On | 4 mm | 0.157 in | Receptacle | Crimp | Polybutylene Terephthalate (PBT), Glass Filled | Female Socket | 8 | 0.236 in | 6 mm | Contacts Not Included | 140 °C | -40 °C |
TE Connectivity AMP Connectors 2-1418479-1 | Gray | 2 | Sealed | Free Hanging (In-Line) | Slide-On | 4 mm | 0.157 in | Receptacle | Crimp | Polybutylene Terephthalate (PBT), Glass Filled | Female Socket | 8 | 0.236 in | 6 mm | Contacts Not Included | 140 °C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Distributor | Package | Quantity | $ | |
---|---|---|---|---|
Digikey | Bulk | 1 | $ 2.21 | |
10 | $ 1.97 | |||
25 | $ 1.96 | |||
50 | $ 1.94 | |||
100 | $ 1.78 | |||
380 | $ 1.77 | |||
760 | $ 1.61 | |||
1140 | $ 1.44 | |||
2660 | $ 1.33 |
Description
General part information
1418479 Series
8 Rectangular Connectors - Housings Receptacle Gray 0.157" (4.00mm)
