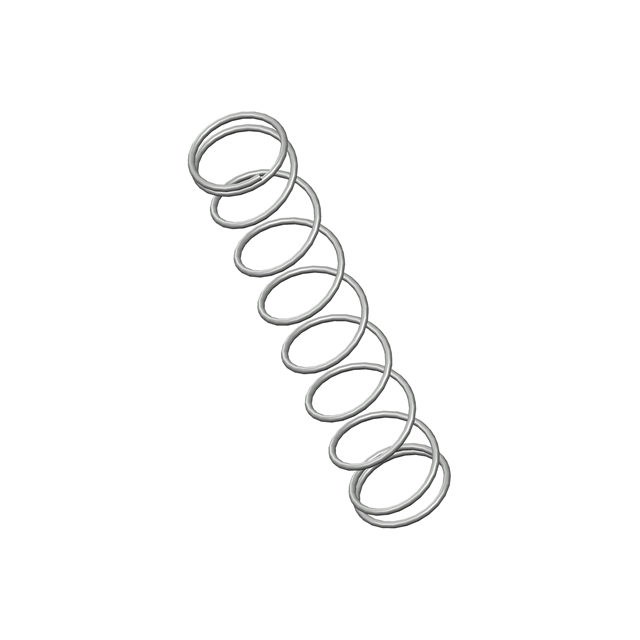

152-ACS
ActiveCentury Spring Corp
COMP O= .188,L=1.00,W= .013
152-ACS
ActiveCentury Spring Corp
COMP O= .188,L=1.00,W= .013
Description
General part information
152-ACS
COMP O= .188,L=1.00,W= .013
Technical Specifications
Parameters and characteristics for this part
| Specification | 152-ACS |
|---|---|
| Diameter - Inside | 0.162 in |
| Diameter - Outside | 0.188 in |
| End Style | Closed |
| Finish | Zinc |
| Free Length | 1 in |
| Material | Music Wire |
| Rate (lbs/in) | 0.99 lbs/in |
| Type | Compression |
| Wire Diameter | 0.013 in |
