Description
General part information

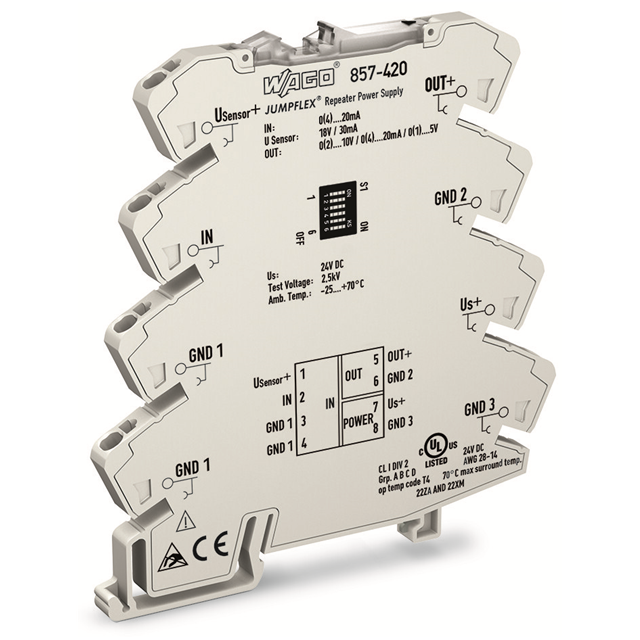

857-420
The 857-420 is a Repeater Power Supply links 2- or 3-wire transmitters located in the field. It provides the power required and transmits the analogue signals in an electrically isolated way.
Technical Specifications
Parameters and characteristics for this part
| Specification | 857-420 |
|---|---|
| Input Current Range (Maximum) | 20 mA |
| Input Current Range (Minimum) | 0 A |
| Input Resistance (Additional) Maximum | 50 Ohm |
| Input Resistance (Additional) Minimum | 0 mOhm |
| Input Type | Current |
| Isolation | 2500 V |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Current Range (Max) | 20 mA |
| Output Current Range (Min) | 0 mA |
| Output Type | Current, Voltage |
| Output Voltage Range (Max) | 10 VDC |
| Output Voltage Range (Min) | 0 VDC |
| Termination Style | Spring Terminal |
| Type | Isolation Amplifier |
| Voltage - Supply | 24 VDC |
