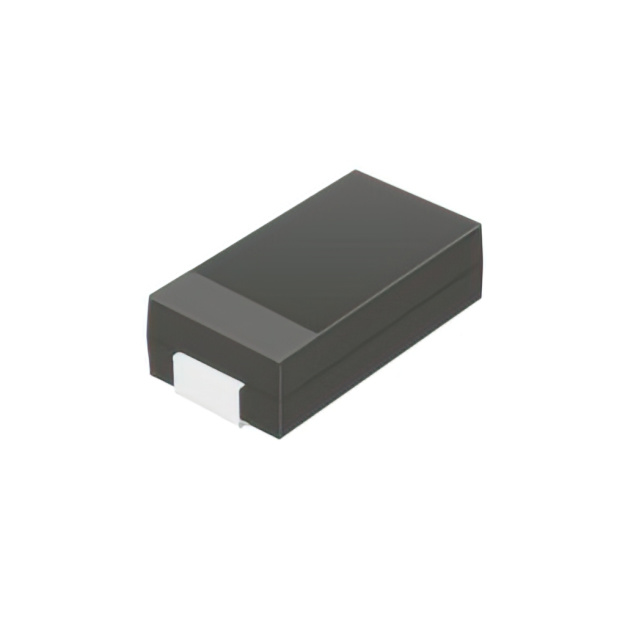

3.0SMCJ9.0A-HF
ActiveComchip Technology
DIODE TVS 9V 3000W SMC UNI-DIR
Deep-Dive with AI
Search across all available documentation for this part.
3.0SMCJ9.0A-HF
ActiveComchip Technology
DIODE TVS 9V 3000W SMC UNI-DIR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3.0SMCJ9.0A-HF | 3.0SMCJ Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Bidirectional Channels | - | 1 |
| Current - Peak Pulse (10/1000µs) | 194.8 A | 10.9 - 326.1 A |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -65 °C | -65 °C |
| Package / Case | SMC, DO-214AB | SMC, DO-214AB |
| Power - Peak Pulse | 3000 W | 3000 W |
| Power - Peak Pulse | 3 kW | 3 kW |
| Power Line Protection | False | False |
| Supplier Device Package | DO-214AB (SMC) | DO-214AB (SMC) |
| Type | Zener | Zener |
| Unidirectional Channels [custom] | 1 | 1 |
| Voltage - Breakdown (Min) [Min] | 10 V | 6.4 - 189 V |
| Voltage - Clamping (Max) @ Ipp | - | 9.2 - 137 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 15.4 V | 10.3 - 275 V |
| Voltage - Reverse Standoff (Typ) | 9 V | 5 - 170 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.36 | |
| 6000 | $ 0.34 | |||
| 9000 | $ 0.31 | |||
| 30000 | $ 0.31 | |||
3.0SMCJ Series
DIODE TVS 9V 3000W SMC UNI-DIR
...
| Part | Unidirectional Channels [custom] | Voltage - Clamping (Max) @ Ipp [Max] | Current - Peak Pulse (10/1000µs) | Type | Supplier Device Package | Voltage - Breakdown (Min) [Min] | Power Line Protection | Applications | Mounting Type | Power - Peak Pulse | Power - Peak Pulse | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Reverse Standoff (Typ) | Bidirectional Channels [custom] | Voltage - Clamping (Max) @ Ipp |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Comchip Technology 3.0SMCJ9.0A-HF | 1 | 15.4 V | 194.8 A | Zener | DO-214AB (SMC) | 10 V | General Purpose | Surface Mount | 3000 W | 3 kW | DO-214AB, SMC | 150 °C | -65 °C | 9 V | |||
Comchip Technology 3.0SMCJ33CA-HF | 56.3 A | Zener | DO-214AB (SMC) | 36.7 V | General Purpose | Surface Mount | 3000 W | 3 kW | DO-214AB, SMC | 150 °C | -65 °C | 33 V | 1 | 53.3 V | |||
Comchip Technology 3.0SMCJ78CA-HF | 23.8 A | Zener | DO-214AB (SMC) | 86.7 V | General Purpose | Surface Mount | 3000 W | 3 kW | DO-214AB, SMC | 150 °C | -65 °C | 78 V | 1 | 126 V | |||
Comchip Technology 3.0SMCJ6.0A-HF | 1 | 10.3 V | 291.3 A | Zener | DO-214AB (SMC) | 6.67 V | General Purpose | Surface Mount | 3000 W | 3 kW | DO-214AB, SMC | 150 °C | -65 °C | 6 V | |||
Comchip Technology 3.0SMCJ36CA-HF | 58.1 V | 51.6 A | Zener | DO-214AB (SMC) | 40 V | General Purpose | Surface Mount | 3000 W | 3 kW | DO-214AB, SMC | 150 °C | -65 °C | 36 V | 1 | |||
Comchip Technology 3.0SMCJ24A-HF | 1 | 38.9 V | 77.1 A | Zener | DO-214AB (SMC) | 26.7 V | General Purpose | Surface Mount | 3000 W | 3 kW | DO-214AB, SMC | 150 °C | -65 °C | 24 V | |||
Comchip Technology 3.0SMCJ28CA-HF | 45.4 V | 66.1 A | Zener | DO-214AB (SMC) | 31.1 V | General Purpose | Surface Mount | 3000 W | 3 kW | DO-214AB, SMC | 150 °C | -65 °C | 28 V | 1 | |||
Comchip Technology 3.0SMCJ120CA-HF | 193 V | Zener | DO-214AB (SMC) | 133 V | General Purpose | Surface Mount | 3000 W | 3 kW | DO-214AB, SMC | 150 °C | -65 °C | 120 V | 1 | ||||
Comchip Technology 3.0SMCJ60A-HF | 1 | 96.8 V | 31 A | Zener | DO-214AB (SMC) | 66.7 V | General Purpose | Surface Mount | 3000 W | 3 kW | DO-214AB, SMC | 150 °C | -65 °C | 60 V | |||
Comchip Technology 3.0SMCJ85CA-HF | 21.9 A | Zener | DO-214AB (SMC) | 94.4 V | General Purpose | Surface Mount | 3000 W | 3 kW | DO-214AB, SMC | 150 °C | -65 °C | 85 V | 1 | 137 V |
Description
General part information
3.0SMCJ Series
15.4V Clamp 194.8A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
