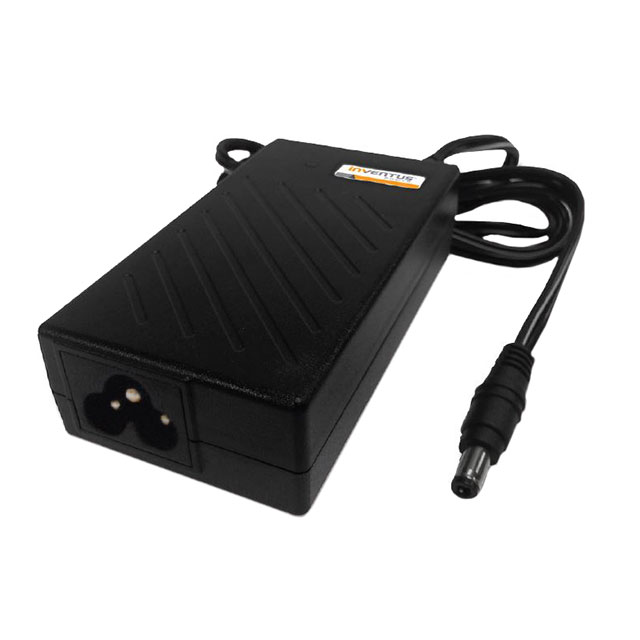

IPD3019-760S

Active

Inventus Power

AC/DC DESKTOP ADAPTER 19V

Search across all available documentation for this part.

Active

Inventus Power

AC/DC DESKTOP ADAPTER 19V

Technical Specifications

Parameters and characteristics for this part

AC/DC DESKTOP ADAPTER 19V

Part	Voltage - Output	Polarization	Output Connector [diameter]	Output Connector [x]	Output Connector	Applications	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Input Connector	No Load Power Consumption	Input Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Efficiency	Weight	Weight	Form	Region Utilized	Cord Length	Cord Length
Inventus Power IPD3019-760S	19 V	Positive Center	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug	ITE (Commercial)	1.6 A	60 °C	0 °C	CE, cTUVus	IEC 320-C6	100 mW	Cord	3.53 "	0.99 "	89.6 mm	25.2 mm	48.8 mm	1.92 in	Level VI	160 g	0.35 lb	Desktop (Class I)	North America	1.22 m	48 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

19V AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
