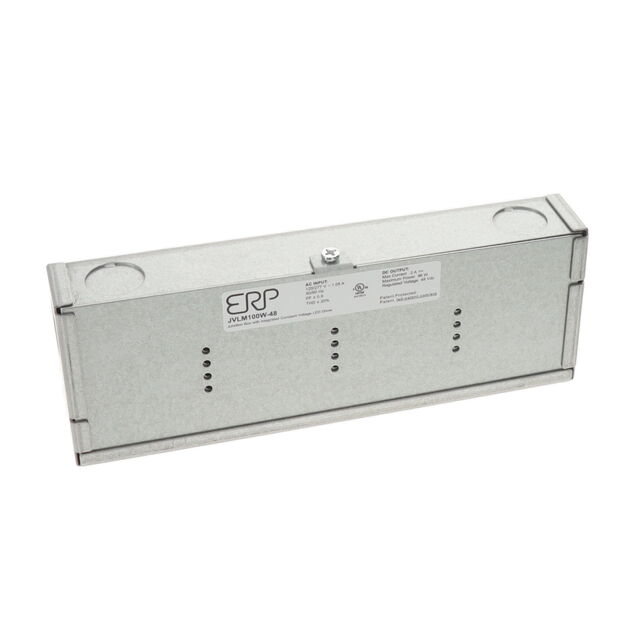

JVLM100W-48

Active

ERP Power, LLC

100W 48V CV LED DRIVER IN JUNCTI

Search across all available documentation for this part.

Active

ERP Power, LLC

100W 48V CV LED DRIVER IN JUNCTI

Technical Specifications

Parameters and characteristics commom to parts in this series

100W 48V CV LED DRIVER IN JUNCTI

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Voltage - Output	Voltage - Input (Min) [Min]	Termination Style	Operating Temperature	Mounting Type	Power (Watts)	Topology	Approval Agency	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Type	Ratings	Number of Outputs	Features
ERP Power, LLC JVLM100W-48	207.3 mm	1.3 "	75.4 mm	2.97 in	8.16 "	33 mm	90 %	48 V	120 VAC	Wire Leads	194 °F	Chassis Mount	96 W	AC DC Converter	cULus, FCC	277 VAC	2 A	Constant Voltage	IP20	1
ERP Power, LLC JVLM100W-24	207.3 mm	1.3 "	75.4 mm	2.97 in	8.16 "	33 mm	90 %	24 V	120 VAC	Wire Leads	194 °F	Chassis Mount	96 W	AC DC Converter	cULus, FCC	277 VAC	4 A	Constant Voltage	IP20	1	OCP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2A 48V Constant Voltage LED Driver AC DC Converter Topology 1 Output
