Description
General part information

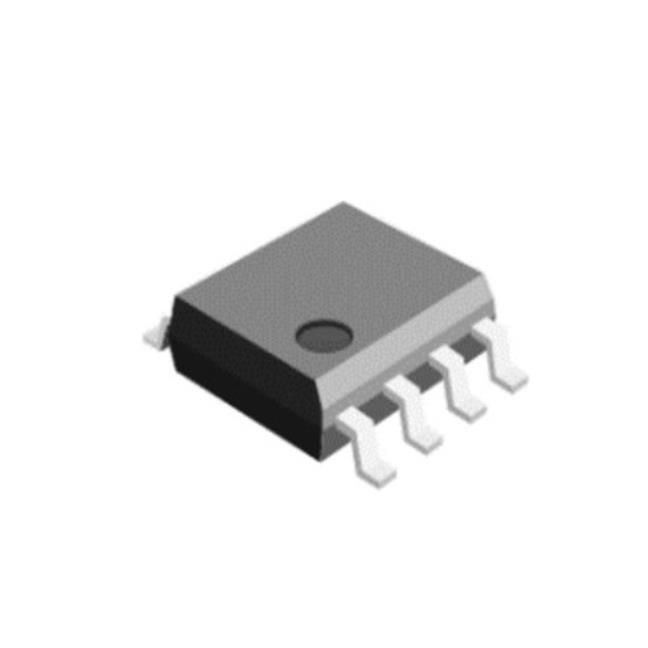

TJ393GD
Comparator General Purpose Open-Collector 8-SOP
Technical Specifications
Parameters and characteristics for this part
| Specification | TJ393GD |
|---|---|
| Current - Input Bias (Max) | 25 nA |
| Current - Quiescent (Max) | 2.5 mA |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Open-Collector |
| Package Length | 0.154 in |
| Package Name | 8-SOIC, 8-SOP |
| Package Width | 3.9 mm |
| Supply Configuration | Single, Dual |
| Type | General Purpose, Standard (General Purpose) |
| Voltage - Input Offset (Max) | 5 mV |
| Voltage - Supply (Single) Maximum | 36 V |
| Voltage - Supply (Single) Minimum | 2 V |
