PE3003-18
ActivePasternack

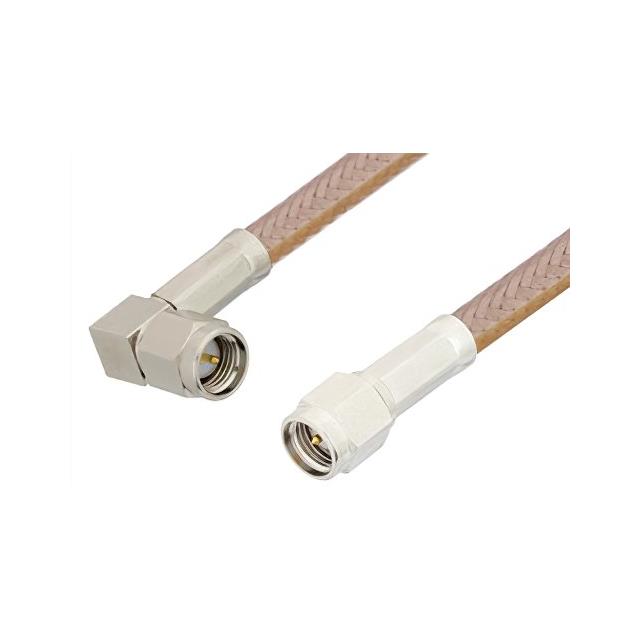

SMA MALE TO SMA MALE RIGHT ANGLE
PE3003-18
ActivePasternack
SMA MALE TO SMA MALE RIGHT ANGLE
Description
General part information
PE3003-18
Cable Assembly Coaxial SMA to SMA RG-400 18.00" (457.20mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3003-18 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG |
| Cable Type Size | 400 |
| Color | Tan |
| Connector Impedance | 50 Ohms |
| Length | 18 in |
| Overall Impedance | 50 Ohms |
| Style | SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
