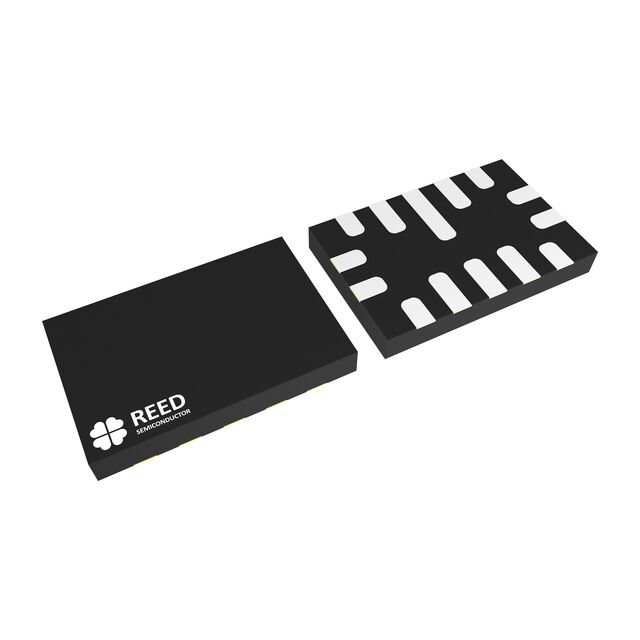

RS53317HR
ActiveReed Semiconductor Corp.
IC REG BUCK ADJ 6A 14QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RS53317HR
ActiveReed Semiconductor Corp.
IC REG BUCK ADJ 6A 14QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RS53317HR | RS53317 Series |
|---|---|---|
| Current - Output | 6 A | 6 A |
| Frequency - Switching | 800 kHz, 600 kHz | 600 - 800 kHz |
| Frequency - Switching [Max] | 2 MHz | 2 MHz |
| Frequency - Switching [Min] | 1.1 MHz | 1.1 MHz |
| Function | Step-Down | Step-Down |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Output Configuration | Positive | Positive |
| Output Type | Adjustable | Adjustable |
| Package / Case | 14-QFN | 14-QFN |
| Supplier Device Package | 14-QFN (2x3) | 14-QFN (2x3) |
| Synchronous Rectifier | True | True |
| Topology | Buck | Buck |
| Voltage - Input (Max) [Max] | 16 V | 16 V |
| Voltage - Input (Min) [Min] | 2.85 V | 2.85 V |
| Voltage - Output (Min/Fixed) | 0.9 V | 0.6 - 0.9 V |
RS53317 Series
IC REG BUCK ADJ 6A 14QFN
| Part | Output Configuration | Current - Output | Voltage - Input (Max) [Max] | Frequency - Switching | Frequency - Switching [Min] | Frequency - Switching [Max] | Voltage - Output (Min/Fixed) | Package / Case | Number of Outputs | Mounting Type | Voltage - Input (Min) [Min] | Function | Topology | Output Type | Synchronous Rectifier | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Reed Semiconductor Corp. RS53317HR | Positive | 6 A | 16 V | 600 kHz, 800 kHz | 1.1 MHz | 2 MHz | 0.9 V | 14-QFN | 1 | Surface Mount | 2.85 V | Step-Down | Buck | Adjustable | 14-QFN (2x3) | |
Reed Semiconductor Corp. RS53317LR | Positive | 6 A | 16 V | 600 kHz, 800 kHz | 1.1 MHz | 2 MHz | 0.6 V | 14-QFN | 1 | Surface Mount | 2.85 V | Step-Down | Buck | Adjustable | 14-QFN (2x3) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.00 | |
| 10 | $ 1.79 | |||
| 25 | $ 1.69 | |||
| 100 | $ 1.44 | |||
| 250 | $ 1.35 | |||
| Digi-Reel® | 1 | $ 2.00 | ||
| 10 | $ 1.79 | |||
| 25 | $ 1.69 | |||
| 100 | $ 1.44 | |||
| 250 | $ 1.35 | |||
| Tape & Reel (TR) | 500 | $ 1.18 | ||
| 1000 | $ 0.98 | |||
| 2500 | $ 0.91 | |||
| 5000 | $ 0.88 | |||
Description
General part information
RS53317 Series
Buck Switching Regulator IC Positive Adjustable 0.9V 1 Output 6A 14-QFN
