00590900
ActiveMenbers

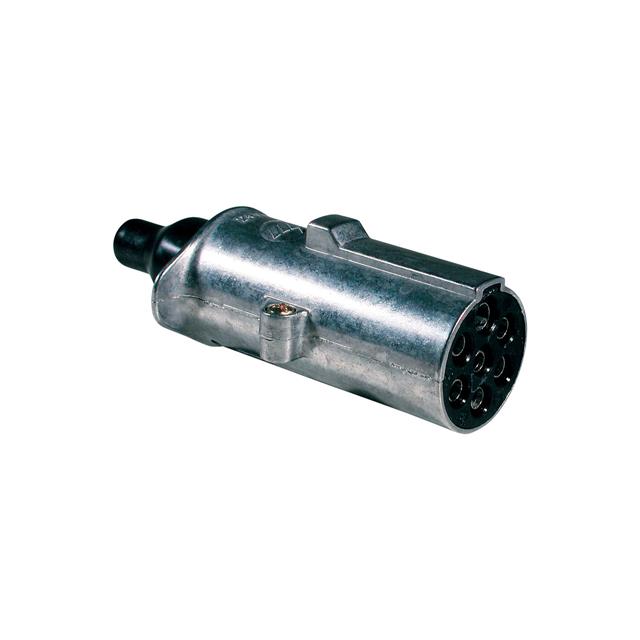

CONN PLUG FMALE 7P NICKEL SCREW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
00590900
ActiveMenbers
CONN PLUG FMALE 7P NICKEL SCREW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 00590900 | - Series |
|---|---|---|
| - | - | |
| 1st Connector Gender | - | Female Sockets |
| 1st Connector Mounting Type | - | Free Hanging (In-Line) |
| 1st Connector Number of Positions | - | 5 - 15 |
| 1st Connector Number of Positions Loaded | - | All |
| 1st Connector Type | - | Plug |
| 2nd Connector Gender | - | Female Sockets, Female Sockets (2) |
| 2nd Connector Mounting Type | - | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | - | 5 - 15 |
| 2nd Connector Number of Positions Loaded | - | All |
| 2nd Connector Type | - | Plug |
| 2nd Connector Type | - | 2 |
| Accessory Type | - | Disconnect Switch, Grommet |
| Applications | Industrial, Automotive | Industrial, Automotive |
| Assembly Configuration | - | Standard |
| Backshell Material, Plating | Aluminum | Plastic, Aluminum |
| Cable Material | - | Polyurethane (PUR) |
| Cable Opening | - | 15.5 mm |
| Cable Opening | - | 0.61 in |
| Cable Type | - | Round Coiled |
| Color | Silver | Black, Silver, Green |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug, Receptacle, Male Pins |
| Contact Finish - Mating | Nickel | Nickel |
| Contact Material | Brass | Brass |
| Fastening Type | Push-Pull | Latch Lock, Push-Pull, Bayonet Lock |
| Features | Strain Relief, Backshell | Backshell, Cap (Cover), Strain Relief |
| For Use With/Related Products | - | Batteries, Vehicle Connectors |
| Ingress Protection | - | IP65 - Dust Tight, Water Resistant, IP54 - Dust Protected, Water Resistant |
| Insert Material | - | Plastic |
| Length | - | 4.5 m |
| Length | - | 14.76 ' |
| Material | - | Rubber |
| Mounting Feature | - | Flange |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Panel Mount, Right Angle |
| Number of Positions | 7 | 7 - 15 |
| Orientation | N | Keyed, N |
| Primary Material | Metal | Plastic, Metal |
| Shell Material | Aluminum | Plastic, Aluminum |
| Shielding | Unshielded | Unshielded |
| Termination | Screw | Screw, Solder Tabs, Crimp |
| Usage | - | Industrial Environments |
| Voltage Rating | 24 VDC | 12 - 24 VDC |
- Series
CIRC CBL 7POS PLUG TO PLUG
| Part | Ingress Protection | 2nd Connector Type | Color | 2nd Connector Gender | 1st Connector Number of Positions | 2nd Connector Mounting Type | Assembly Configuration | Shielding | 1st Connector Type | 1st Connector Gender | Usage | Cable Type | Cable Material | 1st Connector Number of Positions Loaded | 2nd Connector Number of Positions Loaded | 1st Connector Mounting Type | 2nd Connector Number of Positions | Applications | Voltage Rating | Features | Primary Material | Mounting Type | Connector Type | Termination | Shell Material | Backshell Material, Plating | Orientation | Fastening Type | Insert Material | Mounting Feature | Contact Material | Contact Finish - Mating | Number of Positions | For Use With/Related Products | Accessory Type | Cable Opening [custom] | Cable Opening [custom] | 2nd Connector Type | Length | Length [x] | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Menbers 00558785 | IP65 - Dust Tight, Water Resistant | Plug | Black | Female Sockets | 7 | Free Hanging (In-Line) | Standard | Unshielded | Plug | Female Sockets | Industrial Environments | Round Coiled | Polyurethane (PUR) | All | All | Free Hanging (In-Line) | |||||||||||||||||||||||||
Menbers 00556770 | IP65 - Dust Tight, Water Resistant | Plug | Black | Female Sockets | 5 | Free Hanging (In-Line) | Standard | Unshielded | Plug | Female Sockets | Industrial Environments | Round Coiled | Polyurethane (PUR) | All | All | Free Hanging (In-Line) | 5 | ||||||||||||||||||||||||
Menbers 00594770 | Black | Unshielded | Automotive, Industrial | 24 VDC | Backshell | Plastic | Free Hanging (In-Line) | Female Sockets, Plug | Screw | Plastic | Plastic | Keyed | Latch Lock | Plastic | |||||||||||||||||||||||||||
Menbers 00585400 | IP54 - Dust Protected, Water Resistant | Black | Unshielded | Automotive, Industrial | 24 VDC | Backshell, Cap (Cover) | Plastic | Free Hanging (In-Line), Panel Mount | Male Pins, Receptacle | Solder Tabs | Plastic | Plastic | N | Push-Pull | Plastic | Flange | Brass | Nickel | 7 | ||||||||||||||||||||||
Menbers 00594870 | Black | Automotive, Industrial | 24 VDC | Backshell | Plastic | Free Hanging (In-Line) | Female Sockets, Plug | Screw | Plastic | Plastic | Keyed | Latch Lock | Plastic | Brass | 7 | ||||||||||||||||||||||||||
Menbers 00586870 | Black | Unshielded | Automotive, Industrial | 24 VDC | Backshell, Cap (Cover) | Plastic | Free Hanging (In-Line), Panel Mount, Right Angle | Male Pins, Receptacle | Crimp | Plastic | Plastic | Keyed | Bayonet Lock | Plastic | Flange | ||||||||||||||||||||||||||
Menbers 00250962 | |||||||||||||||||||||||||||||||||||||||||
Menbers 00591100 | Silver | Unshielded | Automotive, Industrial | 24 VDC | Backshell, Strain Relief | Metal | Free Hanging (In-Line) | Female Sockets, Male Pins, Plug | Solder Tabs | Aluminum | Aluminum | Keyed | Push-Pull | Brass | Nickel | 7 | |||||||||||||||||||||||||
Menbers 08075160 | Batteries | Disconnect Switch | |||||||||||||||||||||||||||||||||||||||
Menbers 00511300 | Black | Unshielded | Automotive, Industrial | 12 V | Backshell, Strain Relief | Plastic | Free Hanging (In-Line) | Male Pins, Plug | Screw | Plastic | Plastic | Keyed | Bayonet Lock | Plastic | Brass | Nickel | 13 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 50 | $ 15.24 | |
Description
General part information
- Series
7 Position Circular Connector Plug, Female Sockets Screw
