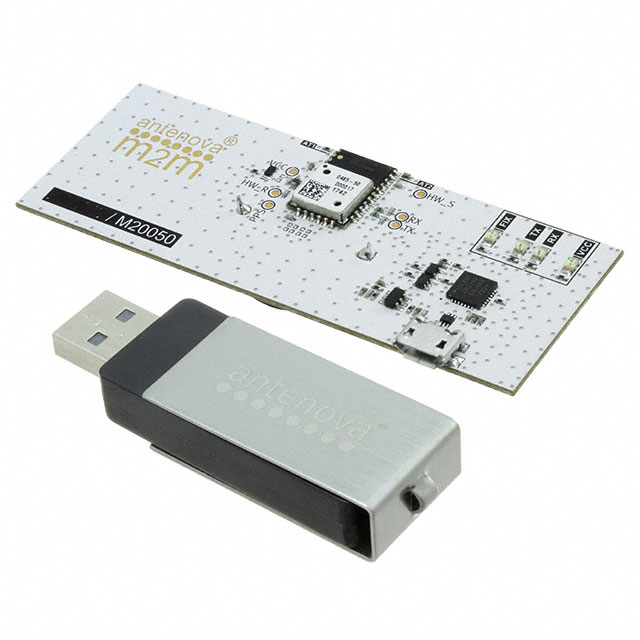

M20050-EVB-1

Active

Antenova

M20050-1 EVALUATION BOARD

Search across all available documentation for this part.

Active

Antenova

M20050-1 EVALUATION BOARD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M20050-EVB-1	M20050 Series

Antenna Connector	-	On-Board, Trace
Applications	-	General Purpose
Current - Receiving	-	29 mA
Data Interface	-	UART
For Use With/Related Products	MT3333	MT3333
Frequency	-	1.575 GHz
Frequency [Max]	1.609 GHz	1.609 GHz
Frequency [Min]	1.559 GHz	1.559 GHz
Modulation or Protocol	-	GNSS, Galileo, BeiDou, GLONASS, GPS
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	Module
Sensitivity	-	-165 dBm
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	Module
Type	GNSS (Beidou, Galileo, GLONASS, GPS)	GNSS (Beidou, Galileo, GLONASS, GPS)
Voltage - Supply	-	2.8 V
Voltage - Supply	-	4.3 V

M20050-1 EVALUATION BOARD

Part	Frequency [Max]	Frequency [Min]	For Use With/Related Products	Type	Supplied Contents	Modulation or Protocol	Frequency	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Applications	Voltage - Supply [Min]	Voltage - Supply [Max]	Antenna Connector	Package / Case	Current - Receiving	Data Interface	Sensitivity
Antenova M20050-EVB-1	1.609 GHz	1.559 GHz	MT3333	GNSS (Beidou, Galileo, GLONASS, GPS)	Board(s)
Antenova M20050-1						BeiDou, Galileo, GLONASS, GNSS, GPS	1.575 GHz	Module	85 °C	-40 °C	Surface Mount	General Purpose	2.8 V	4.3 V	On-Board, Trace	Module	29 mA	UART	-165 dBm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 123.75

General part information

RADIONOVA® MT3333 GNSS (Beidou, Galileo, GLONASS, GPS) 1.559GHz ~ 1.609GHz Evaluation Board
