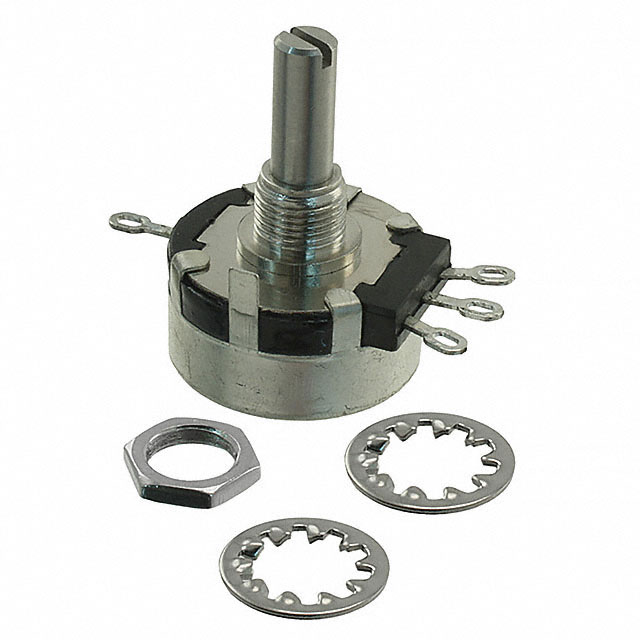

P271-DS21BR10K

Active

TT Electronics/BI

POT 10K OHM 2W PLASTIC LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P271-DS21BR10K

Active

TT Electronics/BI

POT 10K OHM 2W PLASTIC LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P271-DS21BR10K	P271 Series

Actuator Diameter	6.35 mm	6.35 mm
Actuator Diameter [diameter]	0.25 in	0.25 in
Actuator Length	-	15.88 - 25.4 mm
Actuator Length	-	0.625 - 1 in
Actuator Length [z]	22.23 mm	22.23 - 50.8 mm
Actuator Length [z]	0.875 in	0.875 - 2 in
Actuator Type	Slotted	Slotted, Flatted, Round
Adjustment Type	User Defined	User Defined
Built in Switch	False	False
Bushing Thread	3/8-32	3/8-32
Features	-	Sealed
Number of Gangs	1	1
Number of Turns	1	1
Power (Watts)	2 W	2 W
Resistance (Ohms)	10k	10k, 1M
Resistance (Ohms)	-	2.5 - 20 kOhms
Resistive Material	Conductive Plastic	Conductive Plastic
Rotation	312 °	312 °
Size - Body [diameter]	26.67 mm	26.67 mm
Size - Body [diameter]	1.05 Dia	1.05 Dia
Taper	Linear	Linear
Termination Style	Solder Lug	Solder Lug
Tolerance	10 %	10 %

P271 Series

POT 20K OHM 2W PLASTIC LINEAR

Part	Taper	Size - Body [diameter]	Size - Body [diameter]	Bushing Thread	Number of Turns	Termination Style	Number of Gangs	Actuator Diameter	Actuator Diameter [diameter]	Tolerance	Power (Watts)	Adjustment Type	Rotation	Resistive Material	Actuator Length [x]	Actuator Length [x]	Actuator Type	Resistance (Ohms)	Resistance (Ohms)	Features	Actuator Length [z]	Actuator Length [z]
TT Electronics/BI P271-DS11R20K	Linear	26.67 mm	1.05 Dia	3/8-32	1	Solder Lug	1	6.35 mm	0.25 in	10 %	2 W	User Defined	312 °	Conductive Plastic	15.88 mm	0.625 in	Slotted	20 kOhms
TT Electronics/BI P271-SF32R10K	Linear	26.67 mm	1.05 Dia	3/8-32	1	Solder Lug	1	6.35 mm	0.25 in	10 %	2 W	User Defined	312 °	Conductive Plastic	25.4 mm	1 in	Flatted		10k	Sealed
TT Electronics/BI P271-DS22R2K5	Linear	26.67 mm	1.05 Dia	3/8-32	1	Solder Lug	1	6.35 mm	0.25 in	10 %	2 W	User Defined	312 °	Conductive Plastic			Slotted	2.5 kOhms			22.23 mm	0.875 in
TT Electronics/BI P271-DS13R10K	Linear	26.67 mm	1.05 Dia	3/8-32	1	Solder Lug	1	6.35 mm	0.25 in	10 %	2 W	User Defined	312 °	Conductive Plastic	15.88 mm	0.625 in	Slotted		10k
TT Electronics/BI P271-D32R1MEG	Linear	26.67 mm	1.05 Dia	3/8-32	1	Solder Lug	1	6.35 mm	0.25 in	10 %	2 W	User Defined	312 °	Conductive Plastic	25.4 mm	1 in	Slotted		1M
TT Electronics/BI P271-DP41R10K	Linear	26.67 mm	1.05 Dia	3/8-32	1	Solder Lug	1	6.35 mm	0.25 in	10 %	2 W	User Defined	312 °	Conductive Plastic			Round		10k		50.8 mm	2 in
TT Electronics/BI P271-DS21BR10K	Linear	26.67 mm	1.05 Dia	3/8-32	1	Solder Lug	1	6.35 mm	0.25 in	10 %	2 W	User Defined	312 °	Conductive Plastic			Slotted		10k		22.23 mm	0.875 in
TT Electronics/BI P271-DS13R20K	Linear	26.67 mm	1.05 Dia	3/8-32	1	Solder Lug	1	6.35 mm	0.25 in	10 %	2 W	User Defined	312 °	Conductive Plastic	15.88 mm	0.625 in	Slotted	20 kOhms
TT Electronics/BI P271-D22R2K5	Linear	26.67 mm	1.05 Dia	3/8-32	1	Solder Lug	1	6.35 mm	0.25 in	10 %	2 W	User Defined	312 °	Conductive Plastic			Slotted	2.5 kOhms			22.23 mm	0.875 in
TT Electronics/BI P271-DS32R1MEG	Linear	26.67 mm	1.05 Dia	3/8-32	1	Solder Lug	1	6.35 mm	0.25 in	10 %	2 W	User Defined	312 °	Conductive Plastic	25.4 mm	1 in	Slotted		1M

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 19.12
		10	$ 17.65
		25	$ 16.91
		40	$ 14.71
		80	$ 13.23
		280	$ 11.40
		560	$ 11.03

Description

General part information

P271 Series

10k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 2W Solder Lug
