JANTX1N1190

Active

Microchip Technology

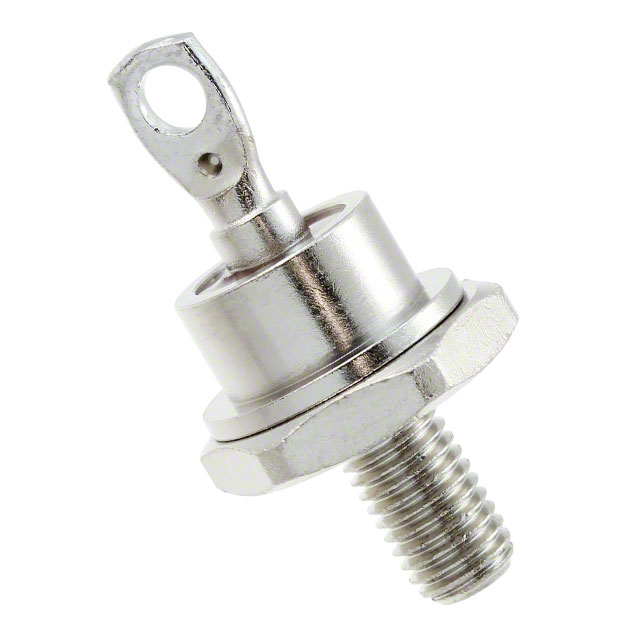

RECTIFIER DIODE SWITCHING 2-PIN 600V, 35A DO-5 TRAY

Search across all available documentation for this part.

Active

Microchip Technology

RECTIFIER DIODE SWITCHING 2-PIN 600V, 35A DO-5 TRAY

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	JANTX1N1190	JANTX1N1190-Rectifier Series

	-	-
Current - Average Rectified (Io)	35 A	35 A
Current - Reverse Leakage @ Vr	10 µA	10 µA
Grade	Military	Military
Mounting Type	Stud Mount	Stud Mount
Operating Temperature - Junction [Max]	175 ░C	175 ░C
Operating Temperature - Junction [Min]	-65 C	-65 C
Package / Case	DO-203AB, DO-5, Stud	DO-203AB, DO-5, Stud
Qualification	MIL-PRF-19500/297	MIL-PRF-19500/297
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	DO-5	DO-5
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V	600 V
Voltage - Forward (Vf) (Max) @ If	1.4 V	1.4 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 53.79
Microchip Direct	N/A	1	$ 57.93
Newark	Each	100	$ 53.79
		500	$ 51.73

Rectifier Diode Switching 2-Pin 600V, 35A DO-5 Tray

Part	Qualification	Current - Average Rectified (Io)	Grade	Voltage - Forward (Vf) (Max) @ If	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Current - Reverse Leakage @ Vr	Mounting Type	Package / Case	Supplier Device Package
Microchip Technology JANTX1N1190	MIL-PRF-19500/297	35 A	Military	1.4 V	200 mA, 500 ns	175 ░C	-65 C	600 V	Standard	10 µA	Stud Mount	DO-203AB, DO-5, Stud	DO-5
Microchip Technology JANTX1N1190
