61.073.11
ActiveTE Intercontec

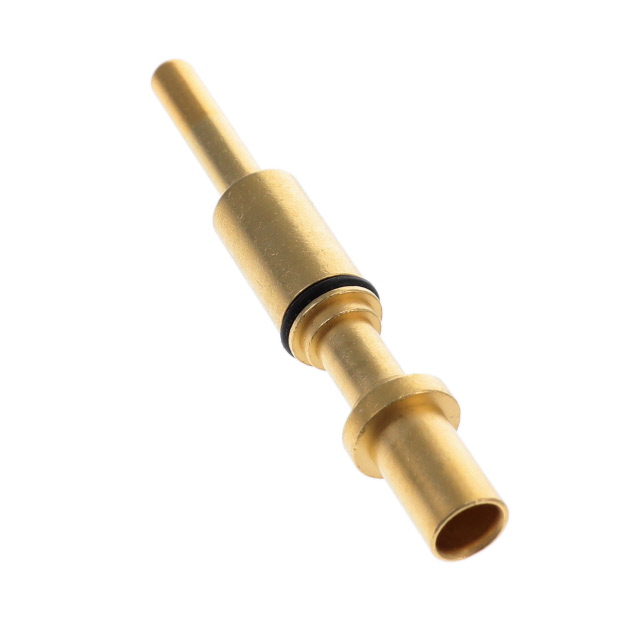

CONTACT PIN SZ 3.6MM CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
61.073.11
ActiveTE Intercontec
CONTACT PIN SZ 3.6MM CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 61.073.11 | 61.07 Series |
|---|---|---|
| Contact Finish | Gold | Gold |
| Contact Material | Brass | Brass |
| Contact Size | 3.6 mm | 1.5 - 3.6 mm |
| Contact Termination | Crimp | Crimp |
| Contact Type | Pin | Pin |
| Features | - | Insulation Support |
| Type | Power, Machined | Power, Machined |
| Wire Gauge or Range - mm˛ [Max] | 10 mm˛ | 1 - 10 mm˛ |
| Wire Gauge or Range - mm˛ [Min] | 1.5 mm˛ | 0.14 - 6 mm˛ |
61.07 Series
CONTACT PIN SZ 3.6MM CRIMP GOLD
| Part | Contact Size | Contact Termination | Wire Gauge or Range - mm˛ [Min] | Wire Gauge or Range - mm˛ [Max] | Contact Type | Type | Contact Material | Contact Finish | Features |
|---|---|---|---|---|---|---|---|---|---|
TE Intercontec 61.074.11 | 3.6 mm | Crimp | 6 mm˛ | 10 mm˛ | Pin | Power, Machined | Brass | Gold | |
TE Intercontec 61.073.11 | 3.6 mm | Crimp | 1.5 mm˛ | 10 mm˛ | Pin | Power, Machined | Brass | Gold | |
TE Intercontec 61-0072-011-P00 | 1.5 mm | Crimp | 0.14 mm˛ | 1 mm˛ | Pin | Power, Machined | Brass | Gold | Insulation Support |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 4.24 | |
| 10 | $ 3.85 | |||
| 25 | $ 3.64 | |||
| 50 | $ 3.56 | |||
| 100 | $ 3.39 | |||
| 300 | $ 2.98 | |||
Description
General part information
61.07 Series
Pin Contact Size 3.6mm Crimp Gold
Documents
Technical documentation and resources
