P25B14E-R1B
ObsoleteMEAN WELL USA Inc.
AC/DC DESKTOP ADPT 5V +/-15V 25W
P25B14E-R1B
ObsoleteMEAN WELL USA Inc.
AC/DC DESKTOP ADPT 5V +/-15V 25W
Description
General part information
P25B14E-R1B

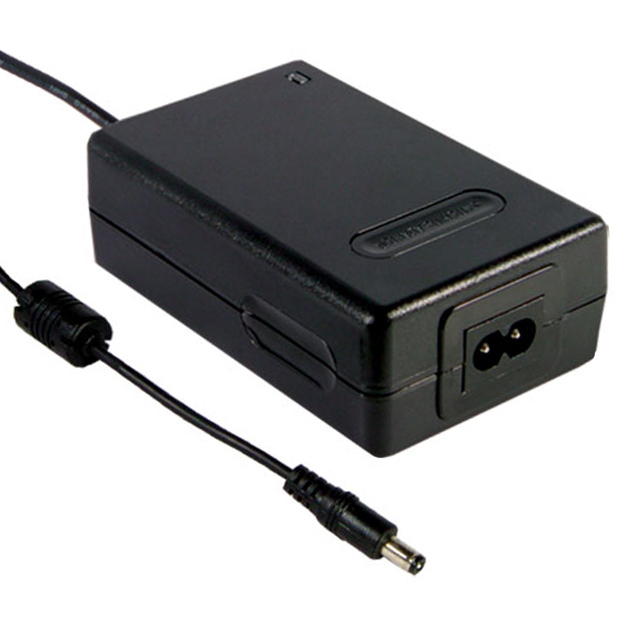

5V, 15V, -15V 25 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
Technical Specifications
Parameters and characteristics for this part
| Specification | P25B14E-R1B |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | GS, CB, cULus, CE |
| Cord Length | 60.2 in |
| Current - Output (Max) Options | 300mA, 2.5A, 500mA |
| Efficiency | 74 % |
| Form | Desktop (Class II) |
| Input Connector | IEC 320-C8 |
| Input Type | Cord (Sold Separately) |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Output Connector | 5 Pin, DIN |
| Output Connector Pin Count | 5 |
| Power (Watts) | 25 W |
| Region Utilized | International |
| Size / Dimension Height | 1.42 in |
| Size / Dimension Length | 4.25 in |
| Size / Dimension Width | 2.64 in |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output | 15 V, 5 VDC, -15 V |
