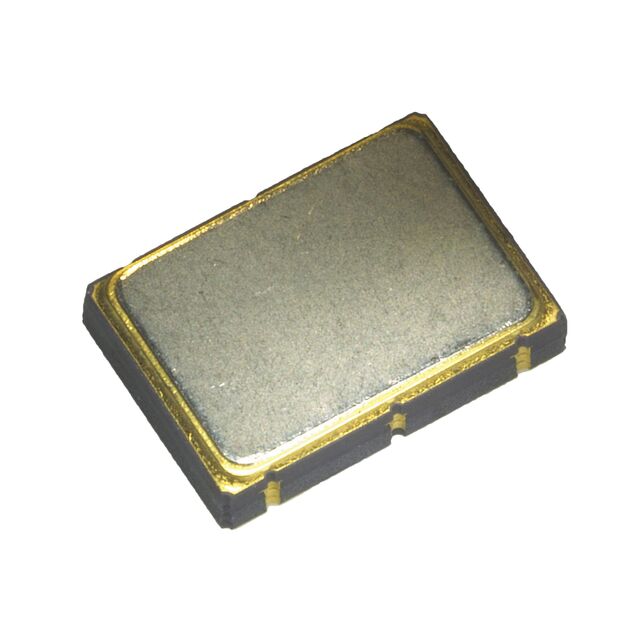

TG-5511CA-92N 25.6000M0
ActiveEPSON
TG-5511CA-92N 25.6000M0: TCXO MH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TG-5511CA-92N 25.6000M0
ActiveEPSON
TG-5511CA-92N 25.6000M0: TCXO MH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TG-5511CA-92N 25.6000M0 | TG-5511CA Series |
|---|---|---|
| Base Resonator | Crystal | Crystal |
| Current - Supply (Max) [Max] | 7 mA | 7 - 10 mA |
| Frequency | 25.6 MHz | 19.2 - 49.152 MHz |
| Frequency Stability | 28 ppm | 28 ppm |
| Height - Seated (Max) [Max] | 0.067 in | 0.067 in |
| Height - Seated (Max) [Max] | 1.7 mm | 1.7 mm |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output | CMOS | CMOS |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension [x] | 7 mm | 7 mm |
| Size / Dimension [x] | 0.276 " | 0.276 " |
| Size / Dimension [y] | 5 mm | 5 mm |
| Size / Dimension [y] | 0.197 " | 0.197 " |
| Supplier Device Package | 4-SMD (7x5) | 4-SMD (7x5) |
| Type | TCXO | TCXO |
| Voltage - Supply | 3.3 V | 3.3 V |
TG-5511CA Series
TG-5511CA-90N 25.0000M0: TCXO MH
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Frequency | Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Output | Base Resonator | Current - Supply (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply | Mounting Type | Frequency Stability | Package / Case | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
7 mm | 5 mm | 0.276 " | 0.197 " | 25 MHz | TCXO | 0.067 in | 1.7 mm | CMOS | Crystal | 7 mA | 85 °C | -40 °C | 3.3 V | Surface Mount | 28 ppm | 4-SMD, No Lead | ||
7 mm | 5 mm | 0.276 " | 0.197 " | 19.44 MHz | TCXO | 0.067 in | 1.7 mm | CMOS | Crystal | 7 mA | 85 °C | -40 °C | 3.3 V | Surface Mount | 28 ppm | 4-SMD, No Lead | ||
7 mm | 5 mm | 0.276 " | 0.197 " | 25.6 MHz | TCXO | 0.067 in | 1.7 mm | CMOS | Crystal | 7 mA | 85 °C | -40 °C | 3.3 V | Surface Mount | 28 ppm | 4-SMD, No Lead | 4-SMD (7x5) | |
7 mm | 5 mm | 0.276 " | 0.197 " | 49.152 MHz | TCXO | 0.067 in | 1.7 mm | CMOS | Crystal | 10 mA | 85 °C | -40 °C | 3.3 V | Surface Mount | 28 ppm | 4-SMD, No Lead | ||
7 mm | 5 mm | 0.276 " | 0.197 " | 30.72 MHz | TCXO | 0.067 in | 1.7 mm | CMOS | Crystal | 9 mA | 85 °C | -40 °C | 3.3 V | Surface Mount | 28 ppm | 4-SMD, No Lead | ||
7 mm | 5 mm | 0.276 " | 0.197 " | 19.2 MHz | TCXO | 0.067 in | 1.7 mm | CMOS | Crystal | 7 mA | 85 °C | -40 °C | 3.3 V | Surface Mount | 28 ppm | 4-SMD, No Lead | ||
7 mm | 5 mm | 0.276 " | 0.197 " | 38.4 MHz | TCXO | 0.067 in | 1.7 mm | CMOS | Crystal | 9 mA | 85 °C | -40 °C | 3.3 V | Surface Mount | 28 ppm | 4-SMD, No Lead | ||
7 mm | 5 mm | 0.276 " | 0.197 " | 38.88 MHz | TCXO | 0.067 in | 1.7 mm | CMOS | Crystal | 9 mA | 85 °C | -40 °C | 3.3 V | Surface Mount | 28 ppm | 4-SMD, No Lead |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 8.33 | |
Description
General part information
TG-5511CA Series
25.6 MHz TCXO CMOS Oscillator 3.3V 4-SMD, No Lead
