L201219-113MHF
ActiveITG Electronics, Inc.
11360UH, 20%, 1250 MOHM DCR, 1.2
L201219-113MHF
ActiveITG Electronics, Inc.
11360UH, 20%, 1250 MOHM DCR, 1.2
Description
General part information
L201219-113MHF

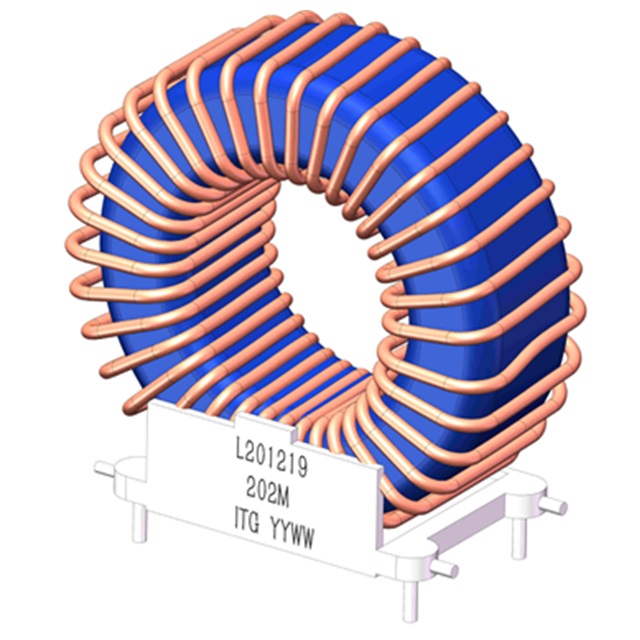

11.36 mH Unshielded Toroidal Inductor 1.2 A 1.25Ohm Max Radial, Vertical Cylinder, 4 Leads (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | L201219-113MHF |
|---|---|
| Current - Saturation (Isat) | 880 mA |
| Current Rating | 1.2 A |
| DC Resistance (DCR) (Max) | 1.25 Ohm |
| Height - Seated (Max) | 1.457 in |
| Inductance | 11.36 mH |
| Inductance Frequency - Test | 10 kHz |
| Material - Core | Alloy Powder |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -55 °C |
| Package Leads | 4 Leads |
| Package Name | Radial, Vertical Cylinder |
| Shielding | Unshielded |
| Size / Dimension Length | 1.319 in |
| Size / Dimension Width | 0.787 in |
| Tolerance | 20 % |
| Type | Toroidal |
