3240688
ActivePhoenix Contact

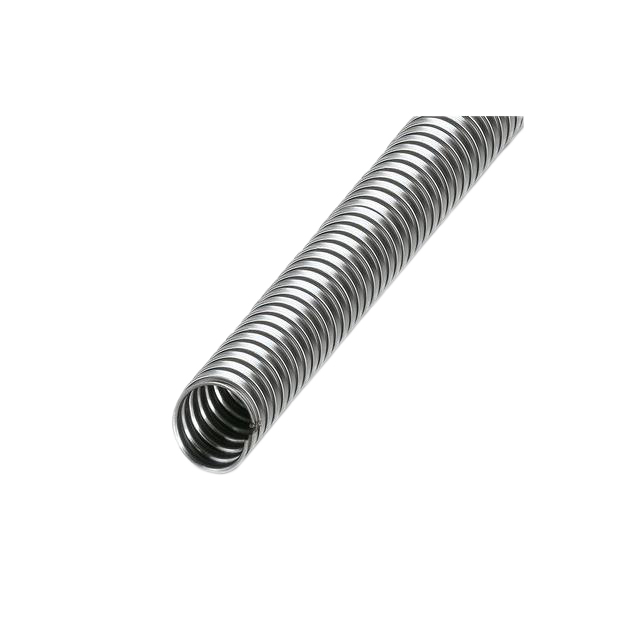

HOSE 0.709" ID SS 3.28' SILVER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3240688
ActivePhoenix Contact
HOSE 0.709" ID SS 3.28' SILVER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3240688 | WP-STEEL Series |
|---|---|---|
| Color | Silver | Silver |
| Diameter - Inside | - | 0.315 - 1.22 in |
| Diameter - Inside | - | 8 - 31 mm |
| Diameter - Outside [diameter] | 0.827 in | 0.315 - 1.417 in |
| Diameter - Outside [diameter] | 21 mm | 8 - 36 mm |
| Length [x] | 1 m | 1 m |
| Length [x] | 3.28 ft | 3.28 ft |
| Material | - | Stainless Steel, Galvanized, Halogen Free, Steel |
| Operating Temperature [Max] | 600 °C | 220 - 600 °C |
| Operating Temperature [Min] | -200 °C | -200 °C |
| Type | Protective Hose, Wire Loom | Protective Hose, Wire Loom |
| Type Attributes | Convoluted, Corrugated | Convoluted, Corrugated |
WP-STEEL Series
HOSE 0.433" ID SS 3.28' SILVER
| Part | Length [x] | Length [x] | Color | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Type Attributes | Operating Temperature [Max] | Operating Temperature [Min] | Type | Material | Diameter - Inside [diameter] | Diameter - Inside [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 3240687 | 1 m | 3.28 ft | Silver | 14 mm | 0.551 in | Convoluted, Corrugated | 600 °C | -200 °C | Protective Hose, Wire Loom | |||
Phoenix Contact 0804377 | 1 m | 3.28 ft | 8 mm | 0.315 in | Convoluted, Corrugated | Protective Hose, Wire Loom | Stainless Steel | |||||
Phoenix Contact 3240688 | 1 m | 3.28 ft | Silver | 21 mm | 0.827 in | Convoluted, Corrugated | 600 °C | -200 °C | Protective Hose, Wire Loom | |||
Phoenix Contact 3240700 | 1 m | 3.28 ft | Silver | 36 mm | 1.417 in | Convoluted, Corrugated | 220 °C | -200 °C | Protective Hose, Wire Loom | Galvanized, Halogen Free, Steel | 1.22 in | 31 mm |
Phoenix Contact 3240697 | 1 m | 3.28 ft | Silver | 10 mm | 0.394 in | Convoluted, Corrugated | 220 °C | -200 °C | Protective Hose, Wire Loom | Galvanized, Halogen Free, Steel | 0.315 in | 8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 42.44 | |
Description
General part information
WP-STEEL Series
Silver Stainless Steel (SS), Halogen Free Convoluted, Corrugated Wire Loom, Protective Hose 0.709" (18.00mm) 3.28' (1.00m)
