BPJR02AUX
ActiveSwitchcraft Inc.

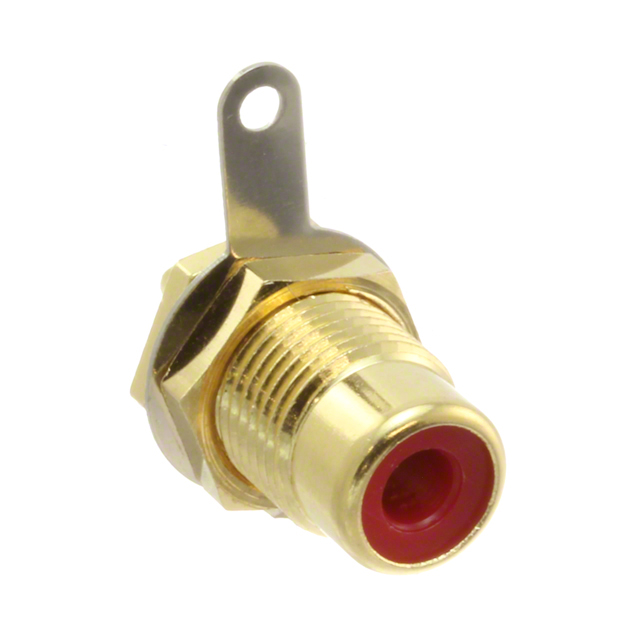

CONN RCA F 2 POS SOLDER ST PANEL MOUNT 2 TERMINAL 1 PORT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BPJR02AUX
ActiveSwitchcraft Inc.
CONN RCA F 2 POS SOLDER ST PANEL MOUNT 2 TERMINAL 1 PORT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BPJR02AUX | BPJR02 Series |
|---|---|---|
| Actual Diameter [custom] | 8.25 mm | 8.25 mm |
| Actual Diameter [custom] | 0.134 " | 0.134 " |
| Actual Diameter [custom] | 3.4 mm | 3.4 mm |
| Actual Diameter [custom] | 0.325 " | 0.325 " |
| Body Color | Silver | Silver |
| Body Material | Brass | Brass |
| Connector Type | Phono (RCA) Jack | Phono (RCA) Jack |
| Contact Material | Brass | Brass |
| Contact Material - Plating | - | Nickel |
| Contact Material - Plating [custom] | Gold | Gold |
| Features | Mounting Hardware, Grounding Tab | Mounting Hardware, Grounding Tab |
| Gender | Female | Female |
| Includes | Connector, Washer, Nut | Connector, Washer, Nut |
| Industry Recognized Mating Diameter [diameter] | 9 mm, 3.2 mm | 3.2 - 9 mm |
| Insulation Color | Red | Red |
| Internal Switch(s) | False | False |
| Number of Positions/Contacts [custom] | 2 | 2 |
| Number of Positions/Contacts [custom] | 2 | 2 |
| Panel Hole Size | 0.375 in | 0.375 in |
| Panel Hole Size | 9.52 mm | 9.52 mm |
| Shielding | Unshielded | Unshielded |
| Signal Lines | Mono | Mono |
| Termination | Solder Eyelet(s) | Solder Eyelet(s) |
| Thread Size | 3/8"-32 | 3/8"-32 |
BPJR02 Series
CONN RCA F 2 POS SOLDER ST PANEL MOUNT 2 TERMINAL 1 PORT
| Part | Thread Size | Features | Connector Type | Includes | Signal Lines | Panel Hole Size | Panel Hole Size | Termination | Contact Material - Plating [custom] | Insulation Color | Body Color | Gender | Actual Diameter [custom] | Actual Diameter [custom] | Actual Diameter [custom] | Actual Diameter [custom] | Contact Material | Internal Switch(s) | Shielding | Industry Recognized Mating Diameter [diameter] | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Body Material | Contact Material - Plating [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. BPJR02X | 3/8"-32 | Grounding Tab, Mounting Hardware | Phono (RCA) Jack | Connector, Nut, Washer | Mono | 0.375 in | 9.52 mm | Solder Eyelet(s) | Nickel | Red | Silver | Female | 8.25 mm | 0.134 " | 3.4 mm | 0.325 " | Brass | Unshielded | 3.2 mm, 9 mm | 2 | 2 | Brass | ||
Switchcraft Inc. BPJR02AUX | 3/8"-32 | Grounding Tab, Mounting Hardware | Phono (RCA) Jack | Connector, Nut, Washer | Mono | 0.375 in | 9.52 mm | Solder Eyelet(s) | Red | Silver | Female | 8.25 mm | 0.134 " | 3.4 mm | 0.325 " | Brass | Unshielded | 3.2 mm, 9 mm | 2 | 2 | Brass | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.25 | |
| 10 | $ 2.95 | |||
| 25 | $ 2.80 | |||
| 50 | $ 2.73 | |||
| 100 | $ 2.60 | |||
| 300 | $ 2.28 | |||
| 500 | $ 2.21 | |||
| 1000 | $ 2.01 | |||
Description
General part information
BPJR02 Series
3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder Eyelet(s)
