1415146

Active

Phoenix Contact

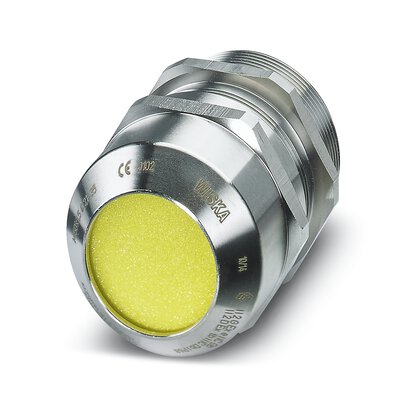

CABLE GLAND 21-35MM M50 BRASS

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 21-35MM M50 BRASS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated M50 Silver

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1415146	G-ESIS-M50 Series

Color	Silver	Silver, Black, Blue
Includes	O-Ring, Seal	O-Ring, Seal
Ingress Protection	IP66/IP68	IP66/IP68
Material	Brass, Nickel Plated	Brass, Nickel Plated, Polyamide (PA), Nylon
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	35 mm	35 mm
Outside Cable Diameter (Max) [Max] [diameter]	1.378 in	1.378 in
Outside Cable Diameter (Min)	21 mm	21 mm
Outside Cable Diameter (Min)	-	0.906 in
Outside Cable Diameter (Min)	-	23 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.827 in	0.827 in
Thread Length	0.591 in	0.591 - 0.709 in
Thread Length	15 mm	15 - 18.01 mm
Thread Size	M50	M50
Type	Cable Gland	Cable Gland

CABLE GLAND 21-35MM M50 BRASS

Part	Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Ingress Protection	Includes	Thread Length	Thread Length	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min)	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]
Phoenix Contact 1415146	Cable Gland	-40 °C	75 ░C	Silver	IP66/IP68	O-Ring, Seal	0.591 in	15 mm	M50	0.827 in	21 mm	Brass, Nickel Plated	35 mm	1.378 in
Phoenix Contact 1415121	Cable Gland	-40 °C	75 ░C	Black, Blue	IP66/IP68	Seal	0.709 in	18.01 mm	M50			Polyamide (PA), Nylon	35 mm	1.378 in	0.906 in	23 mm
Phoenix Contact 1415112	Cable Gland	-40 °C	75 ░C	Black	IP66/IP68	Seal	0.709 in	18.01 mm	M50			Polyamide (PA), Nylon	35 mm	1.378 in	0.906 in	23 mm
