3-1355136-3

Active

TE Connectivity AMP Connectors

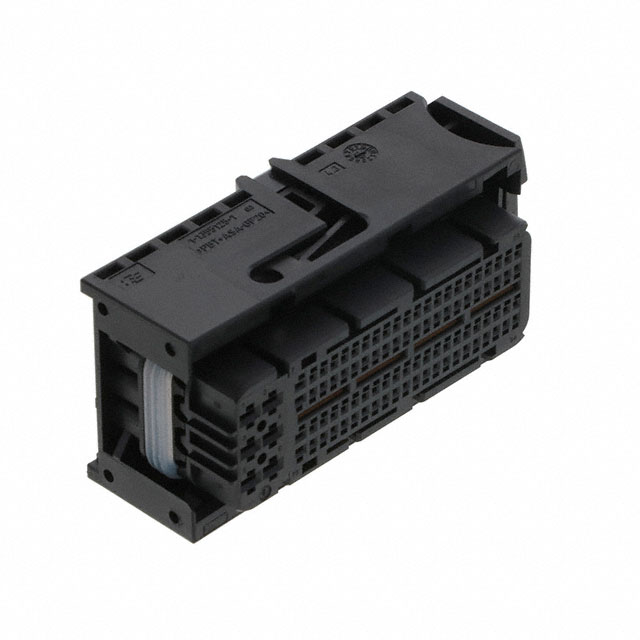

CONN RCPT HSG 94POS 2.50MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 94POS 2.50MM

Technical Specifications

Parameters and characteristics for this part

Specification	3-1355136-3

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Features	Sealed, Strain Relief
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	94
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm
Row Spacing [x]	0.118 in
Row Spacing [x]	3 mm

CONN RCPT HSG 94POS 2.50MM

Part	Contact Termination	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing [x]	Contact Type	Color	Insulation Material	Features	Number of Positions	Note	Mounting Type
TE Connectivity AMP Connectors 3-1355136-3	Crimp	Receptacle	-40 °C	120 °C	0.098 in	2.5 mm	0.118 in	3 mm	Female Socket	Black	Polybutylene Terephthalate (PBT), Glass Filled	Sealed, Strain Relief	94	Contacts Not Included	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

94 Rectangular Connectors - Housings Receptacle Black 0.098" (2.50mm)
