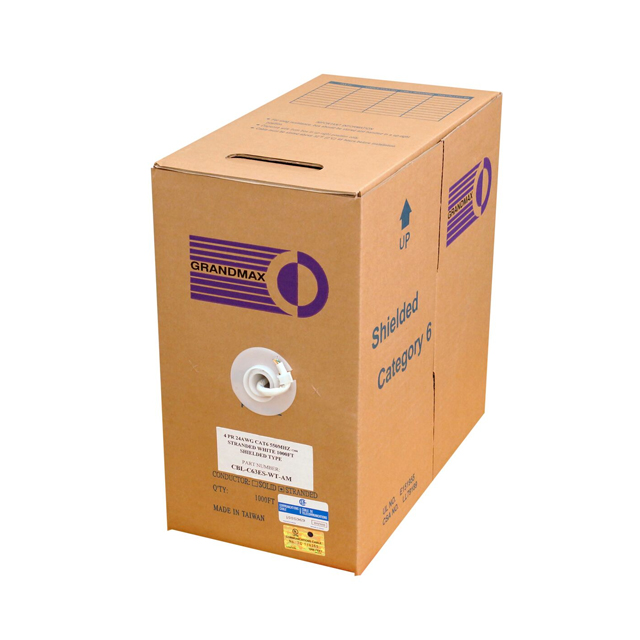

CBL-C63ES-WT-AM

Active

Y.C. Cable (East)

CABLE CAT6 8COND 24AWG WHT 1000'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CBL-C63ES-WT-AM

Active

Y.C. Cable (East)

CABLE CAT6 8COND 24AWG WHT 1000'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CBL-C63ES-WT-AM	CBL-C63 Series

Cable Type	Multi-Pair, Cat6	Multi-Pair, Cat6
Conductor Insulation	High Density Polyethylene (HDPE)	High Density Polyethylene (HDPE)
Conductor Material	Copper, Bare	Copper, Bare
Conductor Strand [custom]	0.0075 in	0.0075 in
Conductor Strand [custom]	7	7
Features	Drain Wire	Drain Wire, Flame Retardant
Jacket (Insulation) Diameter	-	5.79 mm
Jacket (Insulation) Diameter	-	0.228 in
Jacket (Insulation) Diameter [diameter]	6.6 mm	6.6 mm
Jacket (Insulation) Diameter [diameter]	0.26 in	0.26 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket Color	-	Violet, Orange, Black, Green, Gray, Blue, Yellow, Red
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Number of Conductors	8	8
Ratings	UL Style CMR	UL Style CMR
Shield Coverage	100 %	100 %
Shield Material	Aluminum	Aluminum
Shield Type	Foil	Foil
Wire Gauge	24 AWG	24 AWG

CBL-C63 Series

CABLE CAT6 8COND 24AWG VIO 1000'

Part	Number of Conductors	Length	Length	Jacket (Insulation) Material	Shield Material	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Conductor Material	Wire Gauge	Shield Coverage	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Features	Conductor Insulation	Jacket Color	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter
Y.C. Cable (East) CBL-C63ES-PR-AM	8	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	Aluminum	UL Style CMR	6.6 mm	0.26 in	Multi-Pair, Cat6	Copper, Bare	24 AWG	100 %	Foil	0.0075 in	7	Drain Wire	High Density Polyethylene (HDPE)	Violet
Y.C. Cable (East) CBL-C63OG-AM	8	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)					Multi-Pair, Cat6	Copper, Bare	24 AWG			0.0075 in	7	Flame Retardant	High Density Polyethylene (HDPE)	Orange	5.79 mm	0.228 in
Y.C. Cable (East) CBL-C63ES-BK-AM	8	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	Aluminum	UL Style CMR	6.6 mm	0.26 in	Multi-Pair, Cat6	Copper, Bare	24 AWG	100 %	Foil	0.0075 in	7	Drain Wire	High Density Polyethylene (HDPE)	Black
Y.C. Cable (East) CBL-C63ES-GN-AM	8	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	Aluminum	UL Style CMR	6.6 mm	0.26 in	Multi-Pair, Cat6	Copper, Bare	24 AWG	100 %	Foil	0.0075 in	7	Drain Wire	High Density Polyethylene (HDPE)	Green
Y.C. Cable (East) CBL-C63GN-AM	8	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)					Multi-Pair, Cat6	Copper, Bare	24 AWG			0.0075 in	7	Flame Retardant	High Density Polyethylene (HDPE)	Green	5.79 mm	0.228 in
Y.C. Cable (East) CBL-C63BK-AM	8	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)					Multi-Pair, Cat6	Copper, Bare	24 AWG			0.0075 in	7	Flame Retardant	High Density Polyethylene (HDPE)	Black	5.79 mm	0.228 in
Y.C. Cable (East) CBL-C63ES-OG-AM	8	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	Aluminum	UL Style CMR	6.6 mm	0.26 in	Multi-Pair, Cat6	Copper, Bare	24 AWG	100 %	Foil	0.0075 in	7	Drain Wire	High Density Polyethylene (HDPE)	Orange
Y.C. Cable (East) CBL-C63ES-GY-AM	8	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	Aluminum	UL Style CMR	6.6 mm	0.26 in	Multi-Pair, Cat6	Copper, Bare	24 AWG	100 %	Foil	0.0075 in	7	Drain Wire	High Density Polyethylene (HDPE)	Gray
Y.C. Cable (East) CBL-C63ES-BL-AM	8	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	Aluminum	UL Style CMR	6.6 mm	0.26 in	Multi-Pair, Cat6	Copper, Bare	24 AWG	100 %	Foil	0.0075 in	7	Drain Wire	High Density Polyethylene (HDPE)	Blue
Y.C. Cable (East) CBL-C63ES-YL-AM	8	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	Aluminum	UL Style CMR	6.6 mm	0.26 in	Multi-Pair, Cat6	Copper, Bare	24 AWG	100 %	Foil	0.0075 in	7	Drain Wire	High Density Polyethylene (HDPE)	Yellow

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CBL-C63 Series

8 (4 Pair) Conductor Multi-Pair, Cat6 Cable White 24 AWG Foil 1000.0' (304.8m)
