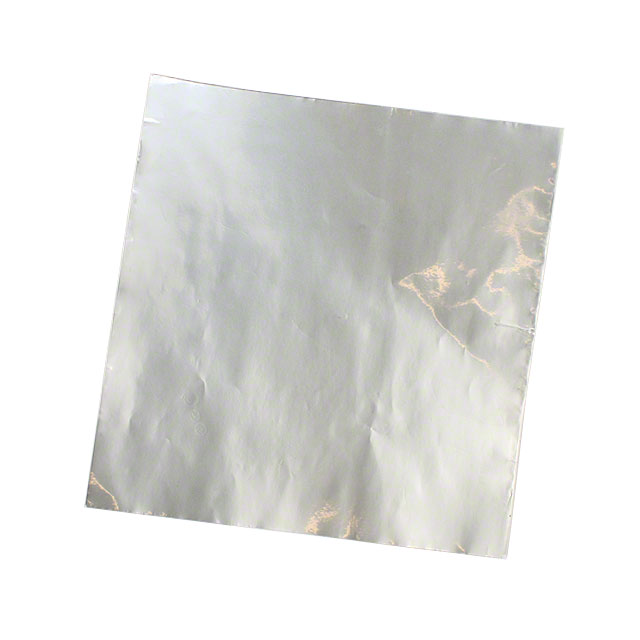

1183-11.5-12(6)
Active3M (TC)
RF EMI SHLDING SHEET 12" X 11.5"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1183-11.5-12(6)
Active3M (TC)
RF EMI SHLDING SHEET 12" X 11.5"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1183-11.5-12(6) |
|---|---|
| Adhesive | Conductive, Single Sided |
| Material | Tin-Plated Copper Foil |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -40 °C |
| Shelf Life | 60 Months |
| Shelf Life Start | Date of Manufacture |
| Storage/Refrigeration Temperature [Max] | 80 °F, 27 °C |
| Storage/Refrigeration Temperature [Min] | 10 °C |
| Thickness - Overall | 0.003 " |
| Thickness - Overall | 0.07 mm |
| Type | Shielding Sheet |
| Width [x] | 292 mm |
| Width [x] | 11.5 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 44.59 | |
| 10 | $ 34.14 | |||
| 25 | $ 31.47 | |||
| 100 | $ 28.50 | |||
| 250 | $ 28.30 | |||
Description
General part information
1183-11.5-12(6)
RF EMI Shielding Sheet 1183 Tin-Plated Copper Foil Conductive, Single Sided 11.500" (292.00mm) X 12.000" (304.80mm) X 0.003" (0.07mm)
