TLE1105F160Q

Active

E-Switch

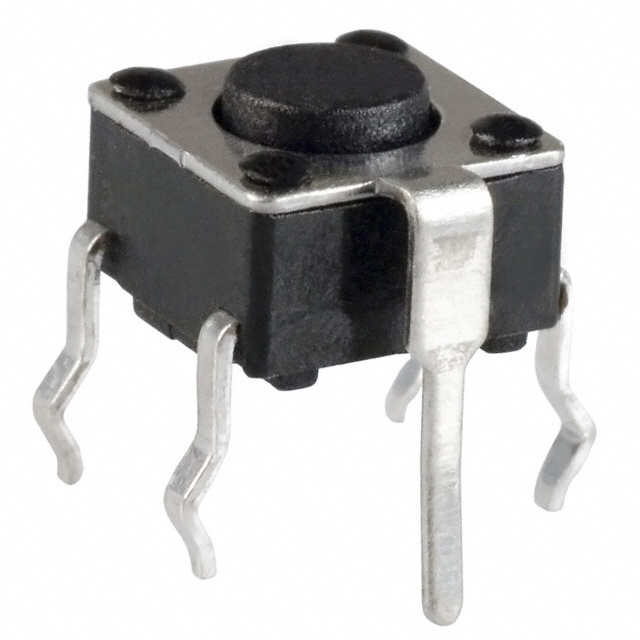

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

TLE1105F160Q

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TLE1105F160Q	TLE1105 Series

Actuator Height off PCB, Vertical	-	5 - 9.7 mm
Actuator Height off PCB, Vertical [z]	4.3 mm	4.3 - 17 mm
Actuator Material	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard, Plunger for Cap, Square Button
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 50 A
Features	Grounding Pin	Grounding Pin, Black Cap, Red Cap
Illumination	Non-Illuminated	Non-Illuminated
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Through Hole	Through Hole
Operating Force	-	0.25 - 100 kgf
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Outline [x]	6 mm	6 mm
Outline [y]	6 mm	6 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.25 mm	0.25 mm
Termination Style	PC Pin	PC Pin

TLE1105 Series

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Switch Function	Mounting Type	Switch Travel	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Actuator Type	Actuator Height off PCB, Vertical [z]	Illumination	Actuator Orientation	Outline [y]	Outline [x]	Contact Rating @ Voltage	Termination Style	Mechanical Life	Features	Actuator Material	Operating Force	Actuator Height off PCB, Vertical
E-Switch TLE1105LF160Q	Off-Mom	Through Hole	0.25 mm	-20 C	70 °C	SPST-NO	Standard	17 mm	Non-Illuminated	Top Actuated	6 mm	6 mm	0.05 A, 12 VDC	PC Pin	100000 Cycles	Grounding Pin	Nylon, Polyamide (PA)
E-Switch TLE1105F160Q	Off-Mom	Through Hole	0.25 mm	-20 C	70 °C	SPST-NO	Standard	4.3 mm	Non-Illuminated	Top Actuated	6 mm	6 mm	0.05 A, 12 VDC	PC Pin	100000 Cycles	Grounding Pin	Nylon, Polyamide (PA)
E-Switch TLE1105EF250Q	Off-Mom	Through Hole	0.25 mm	-20 C	70 °C	SPST-NO	Standard	7.3 mm	Non-Illuminated	Top Actuated	6 mm	6 mm	0.05 A, 12 VDC	PC Pin	100000 Cycles	Grounding Pin	Nylon, Polyamide (PA)	0.25 kgf
E-Switch TLE1105AF100Q	Off-Mom	Through Hole	0.25 mm	-20 C	70 °C	SPST-NO	Standard		Non-Illuminated	Top Actuated	6 mm	6 mm	0.05 A, 12 VDC	PC Pin	100000 Cycles	Grounding Pin	Nylon, Polyamide (PA)	100 gf	5 mm
E-Switch TLE1105F250Q	Off-Mom	Through Hole	0.25 mm	-20 C	70 °C	SPST-NO	Standard	4.3 mm	Non-Illuminated	Top Actuated	6 mm	6 mm	0.05 A, 12 VDC	PC Pin	100000 Cycles	Grounding Pin	Nylon, Polyamide (PA)	0.25 kgf
E-Switch TLE1105DF160Q	Off-Mom	Through Hole	0.25 mm	-20 C	70 °C	SPST-NO	Standard	13 mm	Non-Illuminated	Top Actuated	6 mm	6 mm	0.05 A, 12 VDC	PC Pin	100000 Cycles	Grounding Pin	Nylon, Polyamide (PA)
E-Switch TLE1105PF100Q	Off-Mom	Through Hole	0.25 mm	-20 C	70 °C	SPST-NO	Standard		Non-Illuminated	Top Actuated	6 mm	6 mm	0.05 A, 12 VDC	PC Pin	100000 Cycles	Grounding Pin	Nylon, Polyamide (PA)	100 gf	8.5 mm
E-Switch TLE1105SPF160Q	Off-Mom	Through Hole	0.25 mm	-20 C	70 °C	SPST-NO	Plunger for Cap	7.5 mm	Non-Illuminated	Top Actuated	6 mm	6 mm	0.05 A, 12 VDC	PC Pin	100000 Cycles	Grounding Pin	Nylon, Polyamide (PA)
E-Switch TLE1105SPF160R1DBLK	Off-Mom	Through Hole	0.25 mm	-20 C	70 °C	SPST-NO	Square Button	13.4 mm	Non-Illuminated	Top Actuated	6 mm	6 mm	0.05 A, 50 VDC	PC Pin	100000 Cycles	Black Cap	Nylon, Polyamide (PA)
E-Switch TLE1105F100Q	Off-Mom	Through Hole	0.25 mm	-20 C	70 °C	SPST-NO	Standard	4.3 mm	Non-Illuminated	Top Actuated	6 mm	6 mm	0.05 A, 12 VDC	PC Pin	100000 Cycles	Grounding Pin	Nylon, Polyamide (PA)	100 gf
