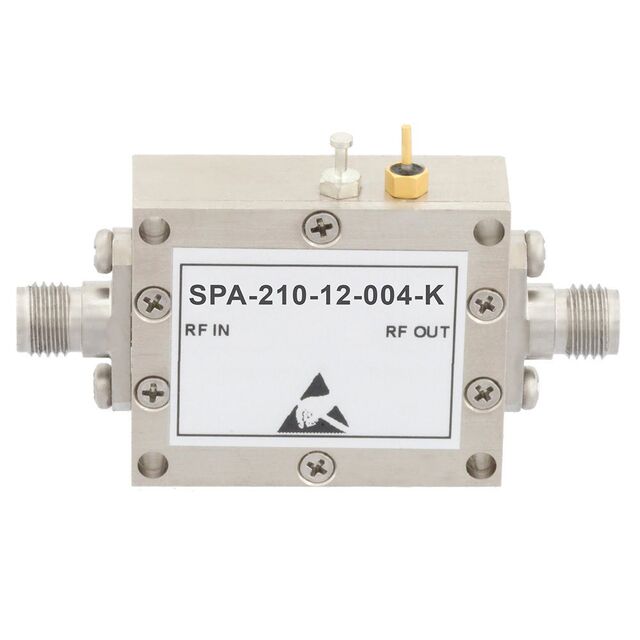

SPA-210-12-004-K
ActiveFairview Microwave
BROADBAND AMP TYPE 2.92MM 2GHZ-2
SPA-210-12-004-K
ActiveFairview Microwave
BROADBAND AMP TYPE 2.92MM 2GHZ-2
Description
General part information
SPA-210-12-004-K
RF Amplifier IC General Purpose 2GHz ~ 24GHz Module
Technical Specifications
Parameters and characteristics for this part
| Specification | SPA-210-12-004-K |
|---|---|
| Current - Supply | 260 mA |
| Frequency (Max) | 24 GHz |
| Frequency (Min) | 2 GHz |
| Gain | 14 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 6.5 dB |
| P1dB | 26 dBm |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
| RF Type | General Purpose |
| Voltage - Supply (Maximum) | 15 V |
| Voltage - Supply (Minimum) | 10 VDC |
