1379029-5

Active

TE Connectivity AMP Connectors

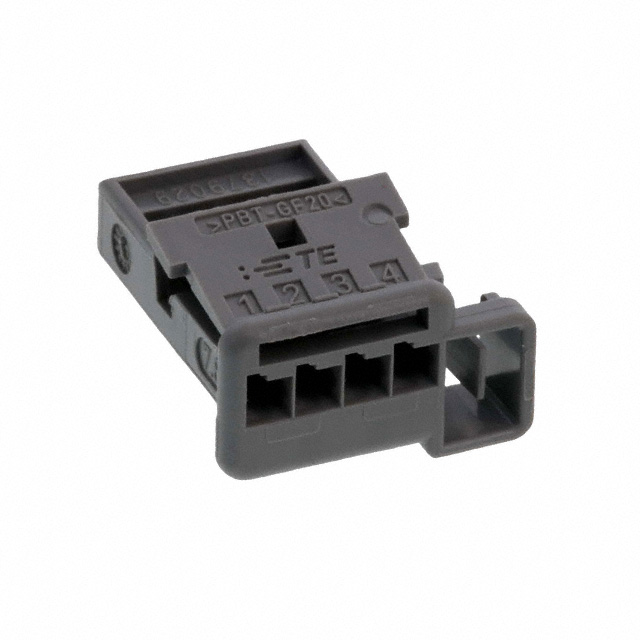

CONN RCPT HSG 4POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 4POS 2.54MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1379029-5	1379029 Series

Color	Gray	Blue, White, Gray
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Lock	Latch Lock
Features	-	Retainer
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	4	4
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in

CONN RCPT HSG 4POS 2.54MM

Part	Number of Positions	Note	Insulation Material	Mounting Type	Pitch [x]	Pitch [x]	Number of Rows	Color	Operating Temperature [Max]	Operating Temperature [Min]	Features	Contact Termination	Fastening Type	Contact Type	Connector Type
TE Connectivity AMP Connectors 1379029-3	4	Contacts Not Included	Polybutylene Terephthalate (PBT), Glass Filled	Free Hanging (In-Line)	2.54 mm	0.1 in	1	Blue	85 °C	-40 °C	Retainer	Crimp	Latch Lock	Female Socket	Receptacle
TE Connectivity AMP Connectors 1379029-2	4	Contacts Not Included	Polybutylene Terephthalate (PBT), Glass Filled	Free Hanging (In-Line)	2.54 mm	0.1 in	1	White	85 °C	-40 °C		Crimp	Latch Lock	Female Socket	Receptacle
TE Connectivity AMP Connectors 1379029-5	4	Contacts Not Included	Polybutylene Terephthalate (PBT), Glass Filled	Free Hanging (In-Line)	2.54 mm	0.1 in	1	Gray	85 °C	-40 °C		Crimp	Latch Lock	Female Socket	Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Receptacle Gray 0.100" (2.54mm)
