Description
General part information

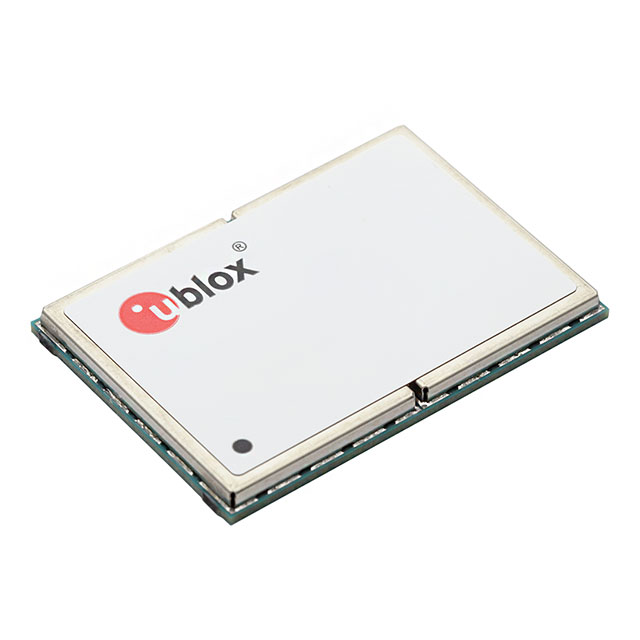

TOBY-R200-02B
Cellular 4G LTE CAT-1 (AT&T/T-Mobile) Transceiver Module 700MHz, 850MHz, 1.7GHz, 1.9GHz Antenna Not Included, Castellation Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | TOBY-R200-02B |
|---|---|
| Antenna Type | Castellation, Antenna Not Included |
| Current - Transmitting (Max) | 540 mA |
| Current - Transmitting (Min) | 50 mA |
| Frequency | 1.9 GHz, 700 MHz, 850 MHz, 1.7 GHz |
| Frequency | 850MHz, 700MHz, 1.9GHz, 1.7GHz |
| Modulation | QPSK |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 152-SMD Module |
| Protocol | T-Mobile), 4G LTE CAT-1 (AT&T |
| RF Family/Standard | Cellular |
| Sensitivity | -112 dBm |
| Serial Interfaces | I2S, USB, I2C, UART |
| Voltage - Supply | 3.8 V |
