M1EXK-1036J
Active3M
IDC CABLE - MCE10K/MC10G/X
Deep-Dive with AI
Search across all available documentation for this part.
M1EXK-1036J
Active3M
IDC CABLE - MCE10K/MC10G/X
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M1EXK-1036J | M1EXK Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Connector Type | Card Edge to Cable | Card Edge to Cable |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Length [x] | 3 ft | 3 ft |
| Length [x] | 914.4 mm | 914.4 mm |
| Number of Positions | 10 | 10 - 64 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
M1EXK Series
IDC CABLE - MCE10K/MC10G/X
| Part | Contact Finish Thickness | Contact Finish Thickness | Cable Termination | Number of Positions | Shielding | Pitch - Cable | Pitch - Cable | Number of Rows | Pitch - Connector | Pitch - Connector | Contact Finish | Length [x] | Length [x] | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.76 Ám | 30 Áin | IDC | 10 | Unshielded | 0.05 " | 1.27 mm | 2 | 0.1 in | 2.54 mm | Gold | 3 ft | 914.4 mm | Card Edge to Cable | |
0.76 Ám | 30 Áin | IDC | 64 | Unshielded | 0.05 " | 1.27 mm | 2 | 0.1 in | 2.54 mm | Gold | 3 ft | 914.4 mm | Card Edge to Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
M1EXK Series

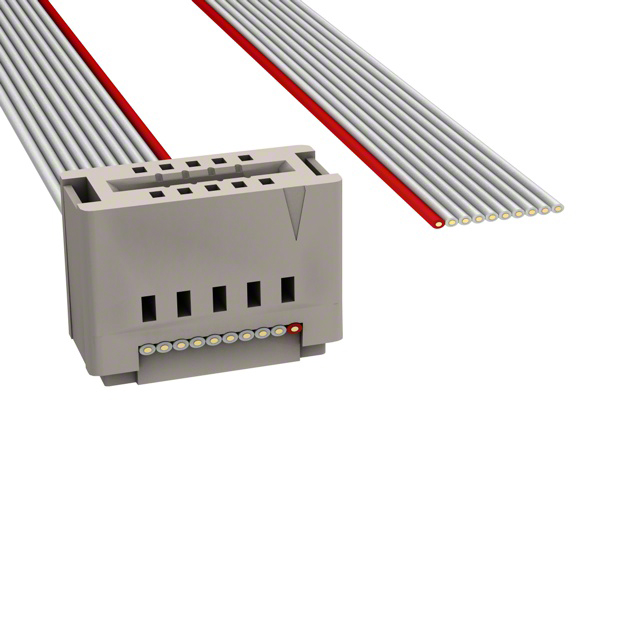

10 Position Cable Assembly Rectangular Card Edge to Cable 3.00' (914.40mm)
Documents
Technical documentation and resources
