SSP-1156B15912
ObsoleteLumex Opto/Components Inc.
LED 1156 REPLACEMENT WHITE
SSP-1156B15912
ObsoleteLumex Opto/Components Inc.
LED 1156 REPLACEMENT WHITE
Description
General part information
SSP-1156B15912

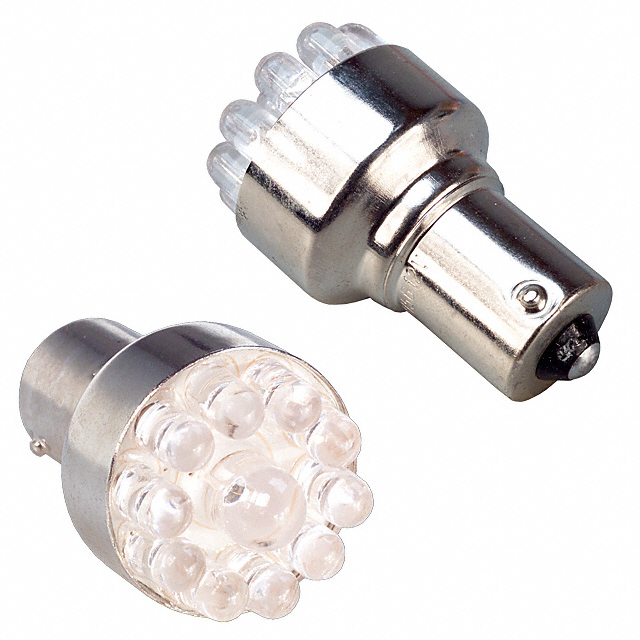

LED Lamp Replacement White (x 11) Bayonet (BA15S) 12V 1.024" Dia x 1.811" H (26.00mm x 46.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | SSP-1156B15912 |
|---|---|
| Applications | Indicator Lights, Incandescent Replacements |
| Base Type | Bayonet BA15S |
| Can Replace Lamps | 1156 |
| Color | White |
| Color Count | 11 count |
| Configuration | Round |
| Configuration Count | 11 |
| Millicandela Rating | 48000 mcd |
| Size / Dimension Diameter | 1.024 in |
| Size / Dimension Height | 1.811 in |
| Voltage - Forward (Vf) (Typ) | 12 VAC |
