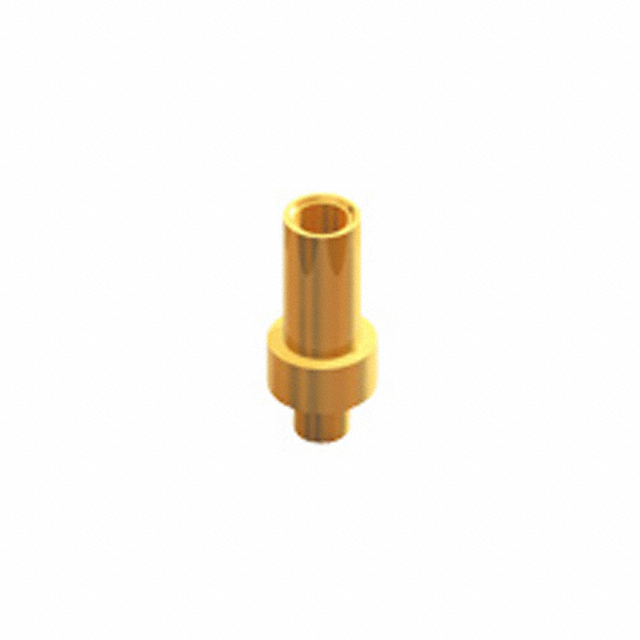

1478-2
ActiveKeystone Electronics
CONN PIN RCPT .032-.046 SWAGE
1478-2
ActiveKeystone Electronics
CONN PIN RCPT .032-.046 SWAGE
Description
General part information
1478-2
Pin Receptacle Connector 0.032" ~ 0.046" (0.81mm ~ 1.17mm) No Tail Swage
Technical Specifications
Parameters and characteristics for this part
| Specification | 1478-2 |
|---|---|
| Accepts Pin Diameter (Max) | 0.046 in |
| Accepts Pin Diameter (Min) | 0.032 in |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Ąin |
| Contact Material | Beryllium Copper |
| Flange Diameter | 0.125 in |
| Length - Overall | 0.324 in |
| Mounting Hole Diameter | 0.067 in |
| Socket Depth | 0.2 in |
| Tail Type | No Tail |
| Termination | Swage |
