TCM809JVLB713
Active1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO3, LEAD FREE, PLASTIC, SC-70, 3-PIN
Deep-Dive with AI
Search across all available documentation for this part.
TCM809JVLB713
Active1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO3, LEAD FREE, PLASTIC, SC-70, 3-PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TCM809JVLB713 | TCM809 Series |
|---|---|---|
| Mounting Type | Surface Mount | Surface Mount |
| Number of Voltages Monitored | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 85 - 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output | Totem Pole, Push-Pull | Totem Pole, Push-Pull |

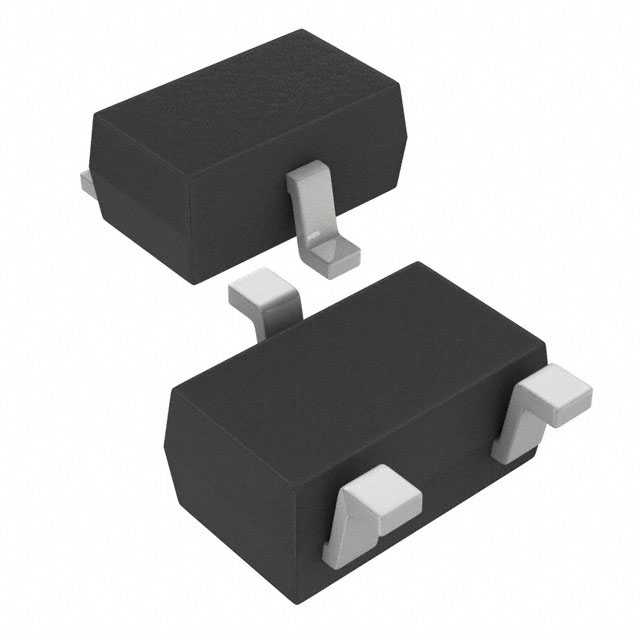

| Package / Case | SOT-323, SC-70 | SOT-323, SC-70, SOT-23-3, SC-59, TO-236-3 |
| Reset | Active Low | Active Low |
| Reset Timeout [Min] | 140 ms | 140 ms |
| Supplier Device Package | SC-70-3 | SC-70-3, SOT-23-3 |
| Type | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset |
| Voltage - Threshold | 4 V | 2.32 - 4.63 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow Electronics | N/A | 1 | $ 0.31 | |
| Avnet Americas | N/A | 3000 | $ 0.33 | |
| 6000 | $ 0.24 | |||
| 12000 | $ 0.23 | |||
| 18000 | $ 0.23 | |||
| 24000 | $ 0.22 | |||
| DigiKey | N/A | 1 | $ 0.46 | |
| 25 | $ 0.38 | |||
| 100 | $ 0.35 | |||
| 3000 | $ 0.35 | |||
| Digikey | Cut Tape (CT) | 1 | $ 0.46 | |
| 25 | $ 0.38 | |||
| 100 | $ 0.35 | |||
| Digi-Reel® | 1 | $ 0.46 | ||
| 25 | $ 0.38 | |||
| 100 | $ 0.35 | |||
| Tape & Reel (TR) | 3000 | $ 0.35 | ||
| Future Electronics | N/A | 3000 | $ 0.23 | |
| Master Electronics | N/A | 3000 | $ 0.24 | |
| 6000 | $ 0.23 | |||
| 9000 | $ 0.22 | |||
| 12000 | $ 0.22 | |||
| 27000 | $ 0.22 | |||
| 51000 | $ 0.21 | |||
| Microchip Direct | T/R | 1 | $ 0.46 | |
| 25 | $ 0.38 | |||
| 100 | $ 0.35 | |||
| 1000 | $ 0.30 | |||
| 5000 | $ 0.26 | |||
| 10000 | $ 0.25 | |||
| Microchip Technology Inc | N/A | 1 | $ 0.46 | |
| 25 | $ 0.38 | |||
| 100 | $ 0.35 | |||
| 1000 | $ 0.30 | |||
| 5000 | $ 0.26 | |||
| Mouser Electronics | N/A | 1 | $ 0.39 | |
| 10 | $ 0.39 | |||
| 25 | $ 0.35 | |||
| 100 | $ 0.34 | |||
| 500 | $ 0.34 | |||
| 3000 | $ 0.31 | |||
| 9000 | $ 0.31 | |||
| NAC | N/A | 1 | $ 0.28 | |
| 100 | $ 0.25 | |||
| 500 | $ 0.23 | |||
| 1000 | $ 0.22 | |||
| Newark | N/A | 1 | $ 0.37 | |
| 3000 | $ 0.37 | |||
| Onlinecomponents.com | N/A | 3000 | $ 0.24 | |
| 6000 | $ 0.23 | |||
| 9000 | $ 0.22 | |||
| 12000 | $ 0.22 | |||
| 27000 | $ 0.22 | |||
| 51000 | $ 0.21 | |||
| Quest Components | N/A | 1 | $ 1.04 | |
| 1924 | $ 0.36 | |||
| 4122 | $ 0.31 | |||
| RS | N/A | 3000 | $ 0.46 | |
| 30000 | $ 0.44 | |||
| 150000 | $ 0.41 | |||
| 300000 | $ 0.39 | |||
TCM809 Series
3-Pin Microcontroller Reset Monitor
| Part | Output | Type | Package / Case | Supplier Device Package | Number of Voltages Monitored | Reset Timeout [Min] | Mounting Type | Reset | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Threshold |
|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology TCM809LVLB713 | Push-Pull, Totem Pole | Simple Reset/Power-On Reset | SC-70, SOT-323 | SC-70-3 | 1 | 140 ms | Surface Mount | Active Low | -40 °C | 125 °C | 4.63 V |
Microchip Technology TCM809SVLB713 | Push-Pull, Totem Pole | Simple Reset/Power-On Reset | SC-70, SOT-323 | SC-70-3 | 1 | 140 ms | Surface Mount | Active Low | -40 °C | 125 °C | 2.93 V |
Microchip Technology TCM809RVNB713 | Push-Pull, Totem Pole | Simple Reset/Power-On Reset | SC-59, SOT-23-3, TO-236-3 | SOT-23-3 | 1 | 140 ms | Surface Mount | Active Low | -40 °C | 125 °C | 2.63 V |
Microchip Technology TCM809MVLB713 | Push-Pull, Totem Pole | Simple Reset/Power-On Reset | SC-70, SOT-323 | SC-70-3 | 1 | 140 ms | Surface Mount | Active Low | -40 °C | 125 °C | |
Microchip Technology TCM809TVLB713 | Push-Pull, Totem Pole | Simple Reset/Power-On Reset | SC-70, SOT-323 | SC-70-3 | 1 | 140 ms | Surface Mount | Active Low | -40 °C | 125 °C | 3.08 V |
Microchip Technology TCM809RENB713 | Push-Pull, Totem Pole | Simple Reset/Power-On Reset | SC-59, SOT-23-3, TO-236-3 | SOT-23-3 | 1 | 140 ms | Surface Mount | Active Low | -40 °C | 85 °C | 2.63 V |
Microchip Technology TCM809ZVNB713 | Push-Pull, Totem Pole | Simple Reset/Power-On Reset | SC-59, SOT-23-3, TO-236-3 | SOT-23-3 | 1 | 140 ms | Surface Mount | Active Low | -40 °C | 125 °C | 2.32 V |
Microchip Technology TCM809ZENB713 | Push-Pull, Totem Pole | Simple Reset/Power-On Reset | SC-59, SOT-23-3, TO-236-3 | SOT-23-3 | 1 | 140 ms | Surface Mount | Active Low | -40 °C | 85 °C | 2.32 V |
Microchip Technology TCM809ZVLB713 | Push-Pull, Totem Pole | Simple Reset/Power-On Reset | SC-70, SOT-323 | SC-70-3 | 1 | 140 ms | Surface Mount | Active Low | -40 °C | 125 °C | 2.32 V |
Microchip Technology TCM809TVNB713 | Push-Pull, Totem Pole | Simple Reset/Power-On Reset | SC-59, SOT-23-3, TO-236-3 | SOT-23-3 | 1 | 140 ms | Surface Mount | Active Low | -40 °C | 125 °C | 3.08 V |
Microchip Technology TCM809RVLB713 | Push-Pull, Totem Pole | Simple Reset/Power-On Reset | SC-70, SOT-323 | SC-70-3 | 1 | 140 ms | Surface Mount | Active Low | -40 °C | 125 °C | 2.63 V |
Microchip Technology TCM809SENB713 | Push-Pull, Totem Pole | Simple Reset/Power-On Reset | SC-59, SOT-23-3, TO-236-3 | SOT-23-3 | 1 | 140 ms | Surface Mount | Active Low | -40 °C | 85 °C | 2.93 V |
Microchip Technology TCM809JENB713 | Push-Pull, Totem Pole | Simple Reset/Power-On Reset | SC-59, SOT-23-3, TO-236-3 | SOT-23-3 | 1 | 140 ms | Surface Mount | Active Low | -40 °C | 85 °C | 4 V |
Microchip Technology TCM809JVNB713 | Push-Pull, Totem Pole | Simple Reset/Power-On Reset | SC-59, SOT-23-3, TO-236-3 | SOT-23-3 | 1 | 140 ms | Surface Mount | Active Low | -40 °C | 125 °C | 4 V |
Microchip Technology TCM809MVNB713 | Push-Pull, Totem Pole | Simple Reset/Power-On Reset | SC-59, SOT-23-3, TO-236-3 | SOT-23-3 | 1 | 140 ms | Surface Mount | Active Low | -40 °C | 125 °C | |
Microchip Technology TCM809JVLB713 | Push-Pull, Totem Pole | Simple Reset/Power-On Reset | SC-70, SOT-323 | SC-70-3 | 1 | 140 ms | Surface Mount | Active Low | -40 °C | 125 °C | 4 V |
Microchip Technology TCM809LENB713 | Push-Pull, Totem Pole | Simple Reset/Power-On Reset | SC-59, SOT-23-3, TO-236-3 | SOT-23-3 | 1 | 140 ms | Surface Mount | Active Low | -40 °C | 85 °C | 4.63 V |
Microchip Technology TCM809TENB713 | Push-Pull, Totem Pole | Simple Reset/Power-On Reset | SC-59, SOT-23-3, TO-236-3 | SOT-23-3 | 1 | 140 ms | Surface Mount | Active Low | -40 °C | 85 °C | 3.08 V |
Microchip Technology TCM809SVNB713 | Push-Pull, Totem Pole | Simple Reset/Power-On Reset | SC-59, SOT-23-3, TO-236-3 | SOT-23-3 | 1 | 140 ms | Surface Mount | Active Low | -40 °C | 125 °C | 2.93 V |
Description
General part information
TCM809 Series
The TCM809 and TCM810 are cost-effective system supervisor circuits designed to monitor VDD in digital systems and provide a reset signal to the host processor when necessary. No external components are required. The reset output is driven active within 20 µsec of VDD falling through the reset voltage threshold. Reset is maintained active for a minimum of 140msec after VDD rises above the reset threshold. The TCM810 has an active-high RESET output while the TCM809 has an active-low RESET output. The output of the TCM809 is guaranteed valid down to VDD = 1V. Both devices are available in a 3-Pin SOT-23B and 3-pin SC-70 package. The TCM809/810 are optimized to reject fast transient glitches on the VDD line. Low supply current of 17µA (VDD = 3.3V) makes these devices suitable for battery powered applications.
