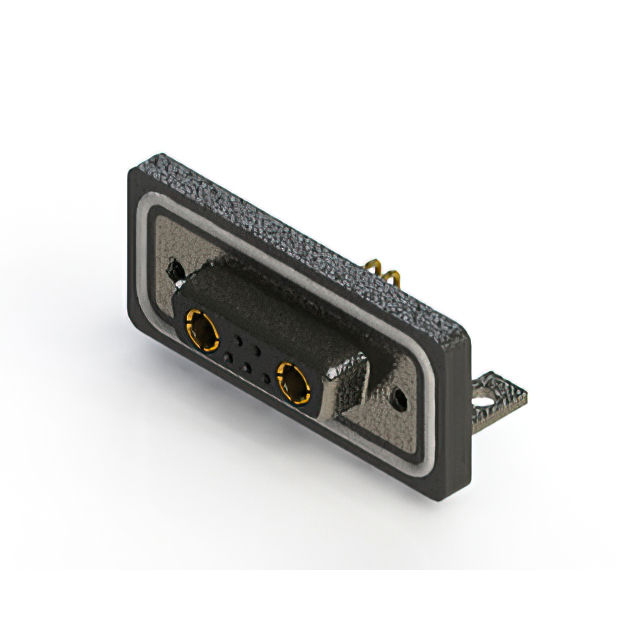

630W7W2-340-1N4

Active

EDAC Inc.

CONN D-SUB RCPT 7POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630W7W2-340-1N4

Active

EDAC Inc.

CONN D-SUB RCPT 7POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630W7W2-340-1N4

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5A, 10A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded, Mounting Brackets
Flange Feature	Housing/Shell (4-40)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions [custom]	7
Number of Positions [custom]	2
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2 (DA, A) - 7W2
Termination	Solder
Voltage Rating	125 VDC

630W7W Series

Part	Contact Finish Thickness	Contact Finish Thickness	Voltage Rating	Features	Color	Contact Material	Number of Rows	Shell Size, Connector Layout	Connector Type	Contact Finish	Number of Positions [custom]	Number of Positions [custom]	Contact Type	Current Rating (Amps)	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Dielectric Material	Shell Material, Finish	Termination	Material Flammability Rating	Flange Feature	Mounting Type	Current Rating (Amps)	Contact Finish Thickness
EDAC Inc. 630W7W2-340-2N2	15 µin	0.38 µm	125 VDC	Shielded	Black	Copper Alloy	2	2 (DA A) - 7W2	Receptacle Female Sockets	Gold	7	2	Signal and Power	5 A 20 A	IP67 - Dust Tight Waterproof	-55 °C	125 °C	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Solder	UL94 V-0	Housing/Shell (4-40)	Panel Mount Right Angle Through Hole
EDAC Inc. 630W7W2-340-1NB	15 µin	0.38 µm	125 VDC	Board Lock Mounting Brackets Shielded	Black	Copper Alloy	2	2 (DA A) - 7W2	Receptacle Female Sockets	Gold	7	2	Signal and Power		IP67 - Dust Tight Waterproof	-55 °C	125 °C	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Solder	UL94 V-0	Housing/Shell (M3)	Panel Mount Right Angle Through Hole	10A 5A
EDAC Inc. 630W7W2-140-2NC	5 µin	0.127 µm	125 VDC	Mounting Brackets Shielded	Black	Copper Alloy	2	2 (DA A) - 7W2	Receptacle Female Sockets	Gold	7	2	Signal and Power	5 A 20 A	IP67 - Dust Tight Waterproof	-55 °C	125 °C	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Solder	UL94 V-0	Housing/Shell (M3)	Through Hole Right Angle
EDAC Inc. 630W7W2-140-4NB	5 µin	0.127 µm	125 VDC	Board Lock Mounting Brackets Shielded	Black	Copper Alloy	2	2 (DA A) - 7W2	Receptacle Female Sockets	Gold	7	2	Signal and Power	5 A 40 A	IP67 - Dust Tight Waterproof	-55 °C	125 °C	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Solder	UL94 V-0	Housing/Shell (M3)	Panel Mount Right Angle Through Hole
EDAC Inc. 630W7W2-140-4NA	5 µin	0.127 µm	125 VDC	Shielded	Black	Copper Alloy	2	2 (DA A) - 7W2	Receptacle Female Sockets	Gold	7	2	Signal and Power	5 A 40 A	IP67 - Dust Tight Waterproof	-55 °C	125 °C	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Solder	UL94 V-0	Housing/Shell (M3)	Panel Mount Right Angle Through Hole
EDAC Inc. 630W7W2-240-4N4			125 VDC	Mounting Brackets Shielded	Black	Copper Alloy	2	2 (DA A) - 7W2	Receptacle Female Sockets	Gold	7	2	Signal and Power	5 A 40 A	IP67 - Dust Tight Waterproof	-55 °C	125 °C	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Solder	UL94 V-0	Housing/Shell (4-40)	Panel Mount Right Angle Through Hole		Flash
EDAC Inc. 630W7W2-240-3N2			125 VDC	Shielded	Black	Copper Alloy	2	2 (DA A) - 7W2	Receptacle Female Sockets	Gold	7	2	Signal and Power	5 A 30 A	IP67 - Dust Tight Waterproof	-55 °C	125 °C	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Solder	UL94 V-0	Housing/Shell (4-40)	Panel Mount Right Angle Through Hole		Flash
EDAC Inc. 630W7W2-140-4N4	5 µin	0.127 µm	125 VDC	Mounting Brackets Shielded	Black	Copper Alloy	2	2 (DA A) - 7W2	Receptacle Female Sockets	Gold	7	2	Signal and Power	5 A 40 A	IP67 - Dust Tight Waterproof	-55 °C	125 °C	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Solder	UL94 V-0	Housing/Shell (4-40)	Panel Mount Right Angle Through Hole
EDAC Inc. 630W7W2-140-1N4	5 µin	0.127 µm	125 VDC	Mounting Brackets Shielded	Black	Copper Alloy	2	2 (DA A) - 7W2	Receptacle Female Sockets	Gold	7	2	Signal and Power		IP67 - Dust Tight Waterproof	-55 °C	125 °C	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Solder	UL94 V-0	Housing/Shell (4-40)	Panel Mount Right Angle Through Hole	10A 5A
EDAC Inc. 630W7W2-340-1N4	15 µin	0.38 µm	125 VDC	Mounting Brackets Shielded	Black	Copper Alloy	2	2 (DA A) - 7W2	Receptacle Female Sockets	Gold	7	2	Signal and Power		IP67 - Dust Tight Waterproof	-55 °C	125 °C	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	Solder	UL94 V-0	Housing/Shell (4-40)	Panel Mount Right Angle Through Hole	10A 5A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 15.69

Description

General part information

630W7W Series

7 (5 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
