501-0060
ActiveNTE Electronics, Inc

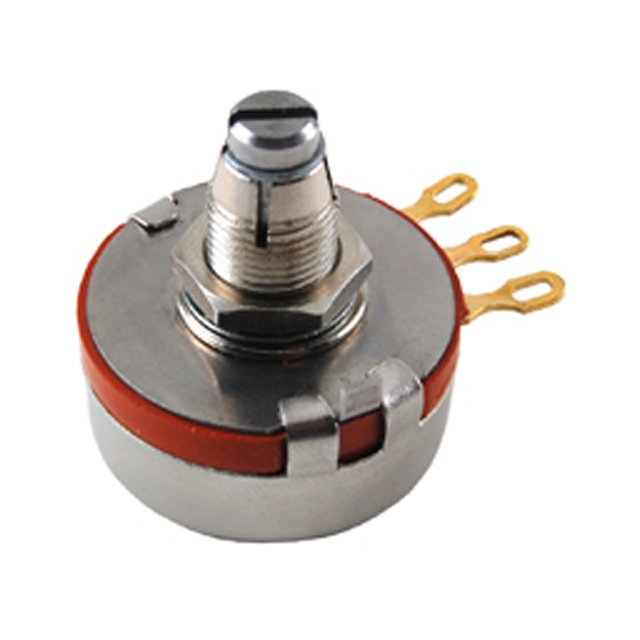

POT 50 OHM 2W CARBON LINEAR
501-0060
ActiveNTE Electronics, Inc
POT 50 OHM 2W CARBON LINEAR
Description
General part information
501-0060
50 Ohm 1 Gang Linear Panel Mount Potentiometer None 1.0 Kierros Carbon 2W Solder Lug
Technical Specifications
Parameters and characteristics for this part
| Specification | 501-0060 |
|---|---|
| Actuator Diameter | 6.35 mm |
| Actuator Length | 0.625 in |
| Actuator Type | Slotted |
| Adjustment Type | User Defined |
| Built in Switch | None |
| Bushing Thread | 3/8-32 |
| Mounting Type | Panel Mount |
| Number of Gangs | 1 |
| Number of Turns | 1 turns |
| Power (Watts) | 2 w |
| Resistance | 50 Ohms |
| Resistive Material | Carbon |
| Rotation | 314 ° |
| Size - Body Diameter | 1.12 in |
| Size - Body Height | 0.536 in |
| Size - Body Shape | Round |
| Taper | Linear |
| Termination Style | Solder Lug |
| Tolerance | 10 % |
