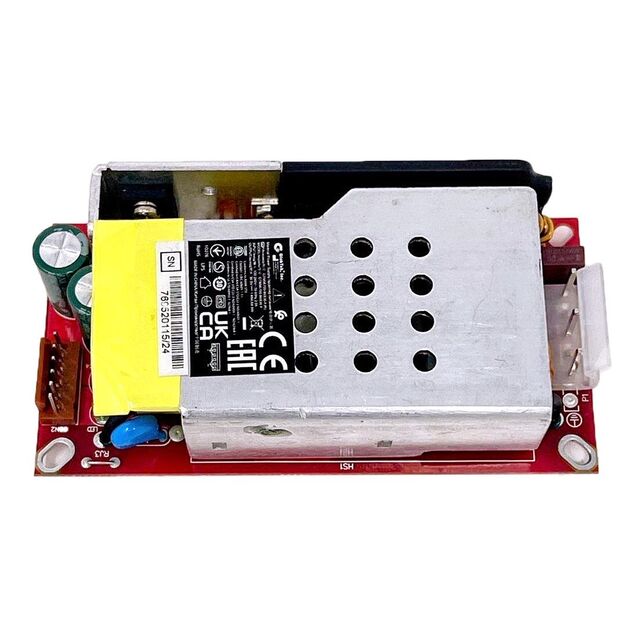

GTM96700-B6836-F(R)
ActiveGlobTek, Inc.
POWER SUPPLY 36V 1.9A OPEN FRAME
GTM96700-B6836-F(R)
ActiveGlobTek, Inc.
POWER SUPPLY 36V 1.9A OPEN FRAME
Description
General part information
GTM96700-B6836-F(R)
Open Frame AC DC Converters 1 Output 36V 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | GTM96700-B6836-F(R) |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | VCCI, ETL, EAC, Ukraine, CE, WEEE, UKCA |
| Current - Output 1 | 1.88 A |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -10 °C |
| Power (Watts) | 68 W |
| Size / Dimension Height | 1 in |
| Size / Dimension Length | 4 in |
| Size / Dimension Width | 2 in |
| Standard Number | 60950-1, 62368-1, 60601-1 |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Isolation | 5.656 kV |
| Voltage - Output 1 | 36 V |
