CIRPSE06T32A13PV0N
ActiveTE Connectivity AMP Connectors

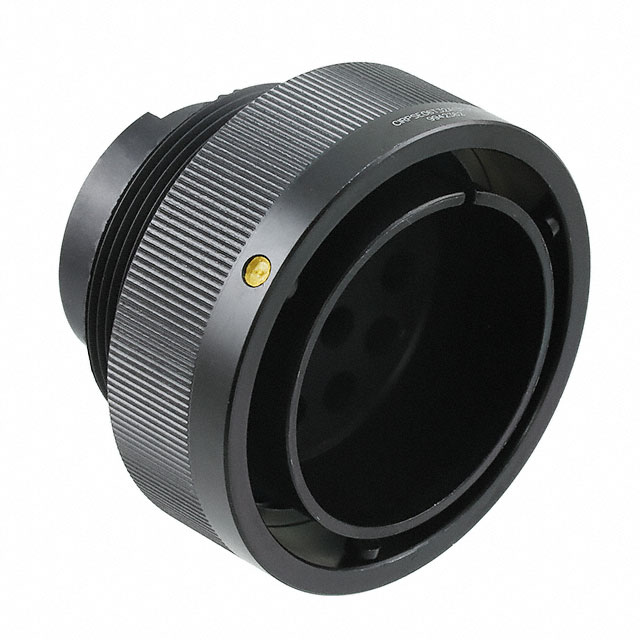

CONN PLUG HSG MALE 13POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CIRPSE06T32A13PV0N
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG MALE 13POS INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CIRPSE06T32A13PV0N | CIRPSE06 Series |
|---|---|---|
| Connector Type | Plug Housing | Plug Housing |
| Contact Shape | Circular | Circular |
| Contact Size | 12 | 12 - 16 |
| Contact Type | Crimp | Crimp |
| Fastening Type | Reverse Bayonet Lock | Reverse Bayonet Lock |
| Features | Coupling Nut | Coupling Nut |
| Housing Color | Black | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 13 | 7 - 60 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -45 °C | -45 °C |
| Orientation | N | N |
| Shell Finish | Chromate over Zinc Cobalt | Chromate over Zinc Cobalt |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | 32-A13 | 22-14, 32-A13, 40-A35, 40-A60, 36-A22 |
| Shell Size - Insert | - | 15 - 19 |
| Shell Size - Insert | - | 18 - 20 |
| Shielding | Shielded | Shielded |
| Type | For Male Pins | For Female Sockets, For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 55.98 | |
CIRPSE06 Series
CONN PLG HSG FMALE 19POS INLINE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Ingress Protection | Shell Finish | Contact Shape | Insert Material | Features | Fastening Type | Note | Type | Contact Type | Contact Size | Shielding | Shell Material | Orientation | Mounting Type | Housing Color | Number of Positions | Shell Size - Insert | Shell Size - Insert [Max] | Shell Size - Insert [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors CIRPSE06T2214SV0N | 125 °C | -45 °C | Plug Housing | IP67 - Dust Tight, Waterproof | Chromate over Zinc Cobalt | Circular | Thermoplastic | Coupling Nut | Reverse Bayonet Lock | Contacts Not Included | For Female Sockets | Crimp | 16 | Shielded | Aluminum Alloy | N | Free Hanging (In-Line) | Black | 19 | 22-14 | ||
TE Connectivity AMP Connectors CIRPSE06T32A13PV0N | 125 °C | -45 °C | Plug Housing | IP67 - Dust Tight, Waterproof | Chromate over Zinc Cobalt | Circular | Thermoplastic | Coupling Nut | Reverse Bayonet Lock | Contacts Not Included | For Male Pins | Crimp | 12 | Shielded | Aluminum Alloy | N | Free Hanging (In-Line) | Black | 13 | 32-A13 | ||
TE Connectivity AMP Connectors CIRPSE06T40A35PV0N | 125 °C | -45 °C | Plug Housing | IP67 - Dust Tight, Waterproof | Chromate over Zinc Cobalt | Circular | Thermoplastic | Coupling Nut | Reverse Bayonet Lock | Contacts Not Included | For Male Pins | Crimp | 12 | Shielded | Aluminum Alloy | N | Free Hanging (In-Line) | Black | 35 | 40-A35 | ||
TE Connectivity AMP Connectors CIRPSE06T2015SV0N | 125 °C | -45 °C | Plug Housing | IP67 - Dust Tight, Waterproof | Chromate over Zinc Cobalt | Circular | Thermoplastic | Coupling Nut | Reverse Bayonet Lock | Contacts Not Included | For Female Sockets | Crimp | 12 | Shielded | Aluminum Alloy | N | Free Hanging (In-Line) | Black | 7 | 15 | 20 | |
TE Connectivity AMP Connectors CIRPSE06T1819SV0N | 125 °C | -45 °C | Plug Housing | IP67 - Dust Tight, Waterproof | Chromate over Zinc Cobalt | Circular | Thermoplastic | Coupling Nut | Reverse Bayonet Lock | Contacts Not Included | For Female Sockets | Crimp | 16 | Shielded | Aluminum Alloy | N | Free Hanging (In-Line) | Black | 10 | 19 | 18 | |
TE Connectivity AMP Connectors CIRPSE06T40A60SV0N | 125 °C | -45 °C | Plug Housing | IP67 - Dust Tight, Waterproof | Chromate over Zinc Cobalt | Circular | Thermoplastic | Coupling Nut | Reverse Bayonet Lock | Contacts Not Included | For Female Sockets | Crimp | 16 | Shielded | Aluminum Alloy | N | Free Hanging (In-Line) | Black | 60 | 40-A60 | ||
TE Connectivity AMP Connectors CIRPSE06T2214PV0N | 125 °C | -45 °C | Plug Housing | IP67 - Dust Tight, Waterproof | Chromate over Zinc Cobalt | Circular | Thermoplastic | Coupling Nut | Reverse Bayonet Lock | Contacts Not Included | For Male Pins | Crimp | 16 | Shielded | Aluminum Alloy | N | Free Hanging (In-Line) | Black | 19 | 22-14 | ||
TE Connectivity AMP Connectors CIRPSE06T2015PV0N | 125 °C | -45 °C | Plug Housing | IP67 - Dust Tight, Waterproof | Chromate over Zinc Cobalt | Circular | Thermoplastic | Coupling Nut | Reverse Bayonet Lock | Contacts Not Included | For Male Pins | Crimp | 12 | Shielded | Aluminum Alloy | N | Free Hanging (In-Line) | Black | 7 | 15 | 20 | |
TE Connectivity AMP Connectors CIRPSE06T40A60PV0N | 125 °C | -45 °C | Plug Housing | IP67 - Dust Tight, Waterproof | Chromate over Zinc Cobalt | Circular | Thermoplastic | Coupling Nut | Reverse Bayonet Lock | Contacts Not Included | For Male Pins | Crimp | 16 | Shielded | Aluminum Alloy | N | Free Hanging (In-Line) | Black | 60 | 40-A60 | ||
TE Connectivity AMP Connectors CIRPSE06T40A35SV0N | 125 °C | -45 °C | Plug Housing | IP67 - Dust Tight, Waterproof | Chromate over Zinc Cobalt | Circular | Thermoplastic | Coupling Nut | Reverse Bayonet Lock | Contacts Not Included | For Female Sockets | Crimp | 12 | Shielded | Aluminum Alloy | N | Free Hanging (In-Line) | Black | 35 | 40-A35 | ||
TE Connectivity AMP Connectors CIRPSE06T36A22PV0N | 125 °C | -45 °C | Plug Housing | IP67 - Dust Tight, Waterproof | Chromate over Zinc Cobalt | Circular | Thermoplastic | Coupling Nut | Reverse Bayonet Lock | Contacts Not Included | For Male Pins | Crimp | 12 | Shielded | Aluminum Alloy | N | Free Hanging (In-Line) | Black | 22 positions | 36-A22 |
Description
General part information
CIRPSE06 Series
13 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
