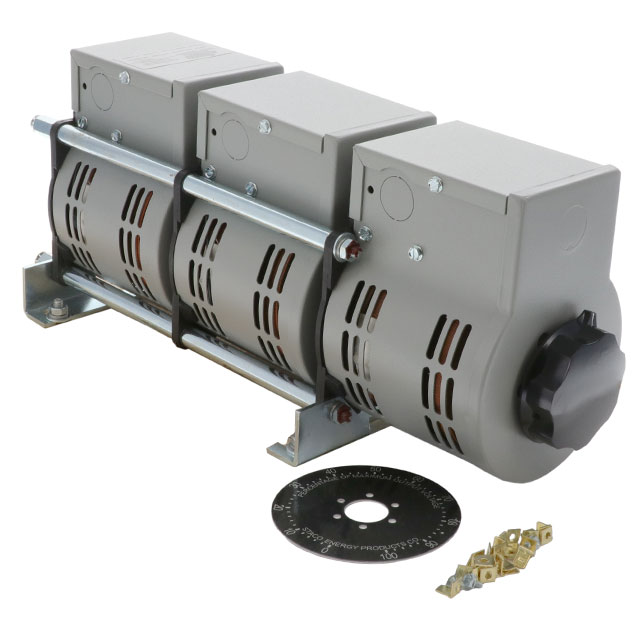

1020BCT-3

Active

Staco Energy Products Company

VARIABLE TRANSFORMER, 3 PHASE WYE INPUT, 3.5AO, 0-480VO, 2.91KVA, CASED, BENCH ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Staco Energy Products Company

VARIABLE TRANSFORMER, 3 PHASE WYE INPUT, 3.5AO, 0-480VO, 2.91KVA, CASED, BENCH ROHS COMPLIANT: YES

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

480VAC, 560VAC Terminals Output 3.5A (3.4kVA) Constant Current Variable Transformer Input Terminals

Technical documentation and resources

Specification	1020BCT-3	1020B Series

Constant Current Load - Max	-	1.96 kVA
Constant Current Load - Max	-	0.98 kVA
Constant Current Load - Max [Max]	3.5 A	3.5 A
Output Type	Terminals	Terminals
Size	-	247.65 - 370.59 mm
Size	-	152.4 mm
Size [x]	174.75 mm	155.96 - 174.75 mm
Size [x]	6.88 in	6.14 - 6.88 in
Size [y]	6 in	4.62 - 6 in
Size [y]	152.4 mm	117.35 - 152.4 mm
Size [z]	14.88 in	4.44 - 14.88 in
Size [z]	377.95 mm	112.78 - 377.95 mm
Type	Panel Mount	Panel Mount
Voltage - Output	560 VAC, 480 VAC	240 - 560 VAC
Voltage - Supply	480 VAC, 240 VAC	120 - 480 VAC

Part	Voltage - Supply	Output Type	Type	Voltage - Output	Constant Current Load - Max [Max]	Constant Current Load - Max	Size [z]	Size [z]	Size [x]	Size [y]	Size [x]	Size [y]	Size [y]	Size [z]	Constant Current Load - Max
Staco Energy Products Company 1020B-2	120 VAC, 240 VAC, 480 VAC	Terminals	Panel Mount	240 VAC, 280 VAC, 480 VAC, 560 VAC	3.5 A	1.96 kVA	9.75 in	247.65 mm	155.96 mm	152.4 mm	6.14 in	6 in
Staco Energy Products Company 1020B-3	240 VAC, 480 VAC	Terminals	Panel Mount	480 VAC, 560 VAC	3.5 A		14.59 in	370.59 mm	155.96 mm	152.4 mm	6.14 in	6 in
Staco Energy Products Company 1020BCT-2	120 VAC, 240 VAC, 480 VAC	Terminals	Panel Mount	240 VAC, 280 VAC, 480 VAC, 560 VAC	3.5 A	1.96 kVA	10.03 in		174.75 mm		6.88 in	6 in	152.4 mm	254.76 mm
Staco Energy Products Company 1020BCT	120 VAC, 240 VAC	Terminals	Panel Mount	240 VAC, 280 VAC	3.5 A		4.44 "		160.27 mm		6.31 in	4.62 in	117.35 mm	112.78 mm	0.98 kVA
Staco Energy Products Company 1020BCT-3	240 VAC, 480 VAC	Terminals	Panel Mount	480 VAC, 560 VAC	3.5 A		14.88 in		174.75 mm		6.88 in	6 in	152.4 mm	377.95 mm
