145846030000829+
ActiveKYOCERA AVX

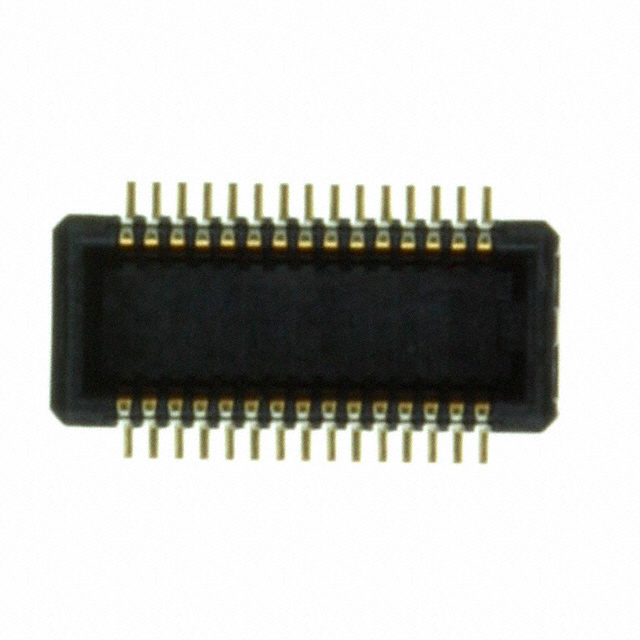

CONN PLUG 30POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
145846030000829+
ActiveKYOCERA AVX
CONN PLUG 30POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 145846030000829+ | 145846 Series |
|---|---|---|
| Connector Type | Outer Shroud Contacts, Plug | Outer Shroud Contacts, Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 4 Áin | 4 Áin |
| Contact Finish Thickness | 0.1 Ám | 0.1 Ám |
| Height Above Board [z] | 0.093 in | 0.093 in |
| Height Above Board [z] | 2.35 mm | 2.35 mm |
| Mated Stacking Heights | 3 mm | 3 mm |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Positions | 30 | 30 - 70 |
| Number of Rows | 2 | 2 |
| Pitch [x] | 0.016 in | 0.016 in |
| Pitch [x] | 0.4 mm | 0.4 mm |
145846 Series
CONN PLUG 40POS SMD GOLD
| Part | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Pitch [x] | Pitch [x] | Mounting Type | Contact Finish | Height Above Board [z] | Height Above Board [z] | Mated Stacking Heights | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
KYOCERA AVX 145846040000829+ | 40 | 4 Áin | 0.1 Ám | 2 | 0.016 in | 0.4 mm | Surface Mount | Gold | 0.093 in | 2.35 mm | 3 mm | Outer Shroud Contacts, Plug |
KYOCERA AVX 145846030000829+ | 30 | 4 Áin | 0.1 Ám | 2 | 0.016 in | 0.4 mm | Surface Mount | Gold | 0.093 in | 2.35 mm | 3 mm | Outer Shroud Contacts, Plug |
KYOCERA AVX 145846060000829+ | 60 | 4 Áin | 0.1 Ám | 2 | 0.016 in | 0.4 mm | Surface Mount | Gold | 0.093 in | 2.35 mm | 3 mm | Outer Shroud Contacts, Plug |
KYOCERA AVX 145846070000829+ | 70 | 4 Áin | 0.1 Ám | 2 | 0.016 in | 0.4 mm | Surface Mount | Gold | 0.093 in | 2.35 mm | 3 mm | Outer Shroud Contacts, Plug |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.52 | |
| 10 | $ 1.32 | |||
| 25 | $ 1.27 | |||
| 50 | $ 1.24 | |||
| 100 | $ 1.18 | |||
| 250 | $ 1.07 | |||
| 500 | $ 0.98 | |||
| Digi-Reel® | 1 | $ 1.52 | ||
| 10 | $ 1.32 | |||
| 25 | $ 1.27 | |||
| 50 | $ 1.24 | |||
| 100 | $ 1.18 | |||
| 250 | $ 1.07 | |||
| 500 | $ 0.98 | |||
| Tape & Reel (TR) | 1000 | $ 0.87 | ||
| 2000 | $ 0.81 | |||
| 3000 | $ 0.78 | |||
| 5000 | $ 0.74 | |||
| 7000 | $ 0.72 | |||
| 10000 | $ 0.70 | |||
Description
General part information
145846 Series
30 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
